CYW54590
  • CYW54590

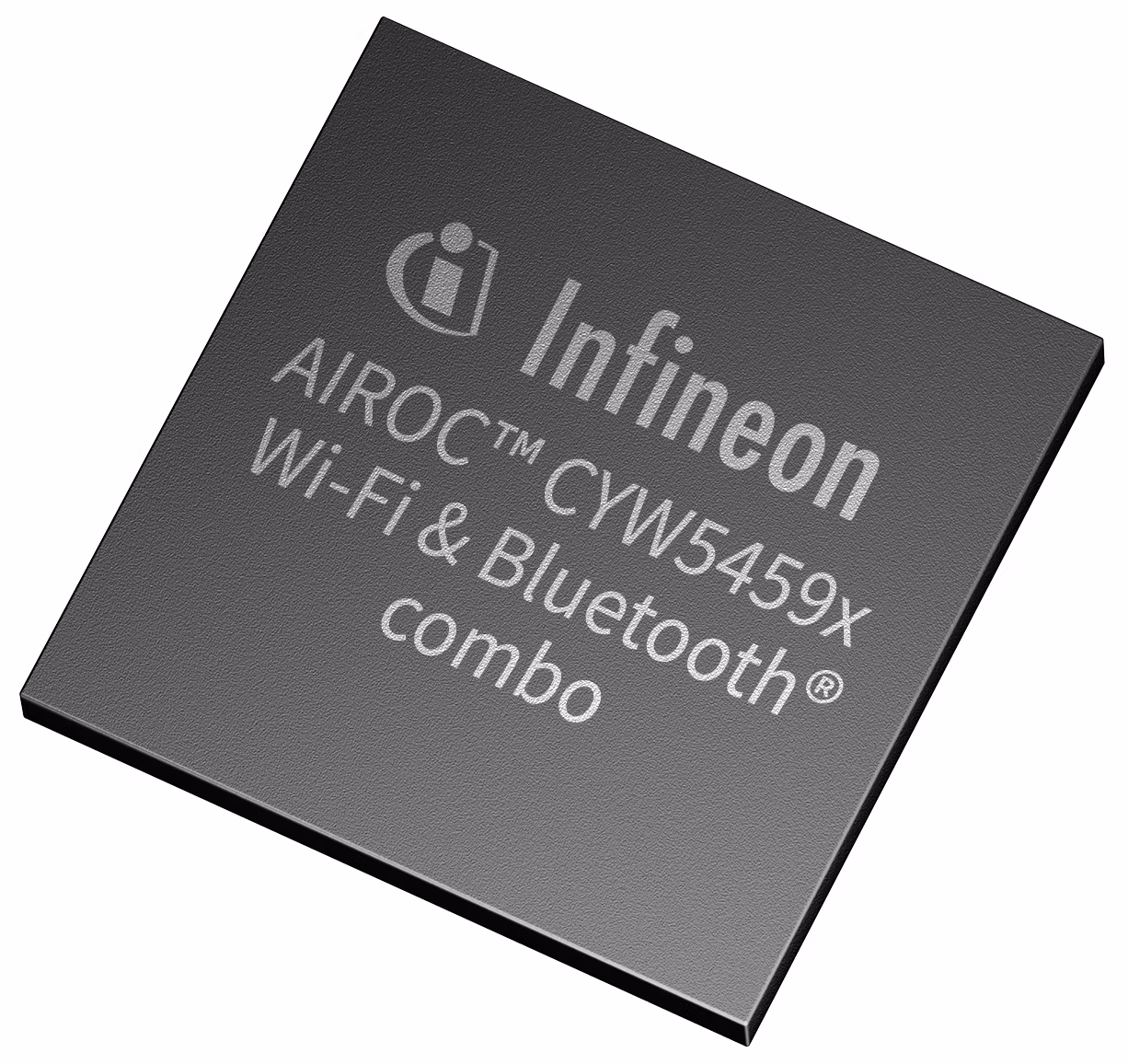

CYW54590

Active and preferred

Infineon’s AIROC™CYW54591/ 54590 single-chip combo device features 2x2 dual-band 2.4 GHz and 5 GHz Wi-Fi 5 (802.11ac) and Bluetooth 5.4®. The WLAN operation supports rates of MCS0-MCS9 (up to 256 QAM) in 20/40/80 MHz channels for data rates up to 867 Mbps. The CYW54591 offers Real Simultaneous Dual Band functionality enabling 1x1 connections on both the 2.4 GHz and 5 GHz bands at the same time. CYW54590 supports 2x2 MIMO wireless connection.

Infineon Technologies CYW54590 Product Info

16 April 2026 0

Parameters

Antenna Configuration

2x2

Bluetooth Interface

UART/PCM/I2S

Bluetooth Specification

Bluetooth 5.4

Core

Cortex M4

CPU

N/A

Dimensions

5.16 x 7.7 mm

Family

AIROC™ Wi-Fi + Bluetooth® Combos

GPIOs

20

Launch Date

2020

Longevity - 15 years

Yes

Longevity - Extended

No

Memory

N/A

Operating system support

Linux, Android

Operating Temperature range

-40 °C to 85 °C

Operating Voltage range

3 V to 4.8 V

Package

WLBGA-194

Partner Module

Y

Pitch

0.4 mm

Planned to be available until at least

01-01-2035

Product Description

Wi-Fi 5 combo

ROM

1600 KB

SRAM

320 kByte

Wi-Fi Band

2.4GHz, 5GHz

Wi-Fi Bandwidth

80 MHz

WI-FI Interface

SDIO/PCIe

Wi-Fi Specification

Wi-Fi 5 (802.11ac)

Apps

Vacuum cleaners, General purpose motor drive, Smart home and building

Features

  • Wi-Fi 5 (802.11ac) Dual-band (2.4/5 GHz)
  • Dual MAC: 2x2 MIMO or 1+1 RSDB modes
  • 54591: RSDB for 2.4GHz + 5GHz operation
  • 54590/1: MIMO support in STA mode
  • 20/40/80 MHz, up to 867Mbps PHY rate
  • Internal PA+LNA w/ External LNA support
  • Class 1 (100m) & Class 2 (10m) operation
  • Bluetooth® 5.1 Ready (AoA/AoD)
  • UART host interface
  • LE-2Mbps, LE-Long Range, Adv. Extensions
  • Declaration ID D066229

Description

  • Dedicated Bluetooth path for Coex
  • Bluetooth® 5.4 (BR + EDR+Bluetooth® LE)
