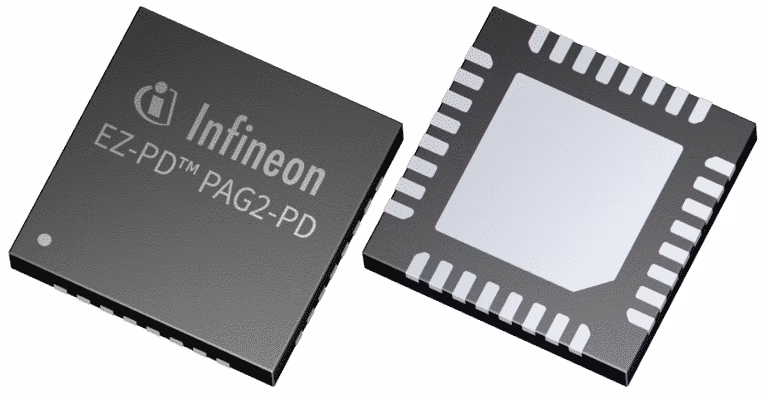

CYPAS2174A1-32LQXQ
  • CYPAS2174A1-32LQXQ

CYPAS2174A1-32LQXQ

Active and preferred

EZ-PD™ PAG2-PD is a highly integrated USB-C PD controller that complies with the latest USB type-C and PD standards and is designed for power adapters and chargers. It offers a significant BOM advantage by integrating all type-C port termination resistors, 34 V-tolerant regulators, a high voltage VBUS NFET gate driver, VBUS fault protections, VBUS to CC short protection, and an integrated feedback circuitry for voltage (VBUS) regulation.

Infineon Technologies CYPAS2174A1-32LQXQ Product Info

16 April 2026 0

Parameters

Applications

USB-PD Power Adapter, USB-C PD charger

Family

EZ-PD™ PAG2-PD

Flash

64 kByte

GPIOs

10

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

5 V to 30 V

Package Type

32-pin QFN

Peak Reflow Temp

260 °C

Product Category

AC-DC DC-DC PD solutions

Product Description

Highly-integrated Power Delivery controller for power adapter

Protection features (OVP, OCP, SCP and ESD)

Y

Software Tools

EZ-PD™ Configuration, ModusToolBox™

SRAM

8 kByte

Temperature grade

Extended Industrial

USB Standard

USB-PD 3.0

VBUS Short Protection

Y

VCONN FET

Y

Apps

USB-C chargers and adapters

Features

  • Supports USB-C PD3.2 SPR and 28V EPR
  • Supports QC5.0, Apple 2.4A, AFC, BC 1.2
  • Support Optocoupler feedback
  • Independent CC/CV compensation
  • Integrated NFET VBUS gate driver
  • Integrated 34V LDO
  • Integrated low-side CSA
  • Integrate VCONN switch
  • OVP, UVP, OCP, SCP, and OTP protections
  • CC-VBUS short protection
  • Support firmware upgrade over CC lines
  • 32-QFN package, tray

Description

  • Meet the latest USB-C PD specification
  • Highly Integrated PD controller
  • Support field firmware upgrade
  • Software development kit supported
