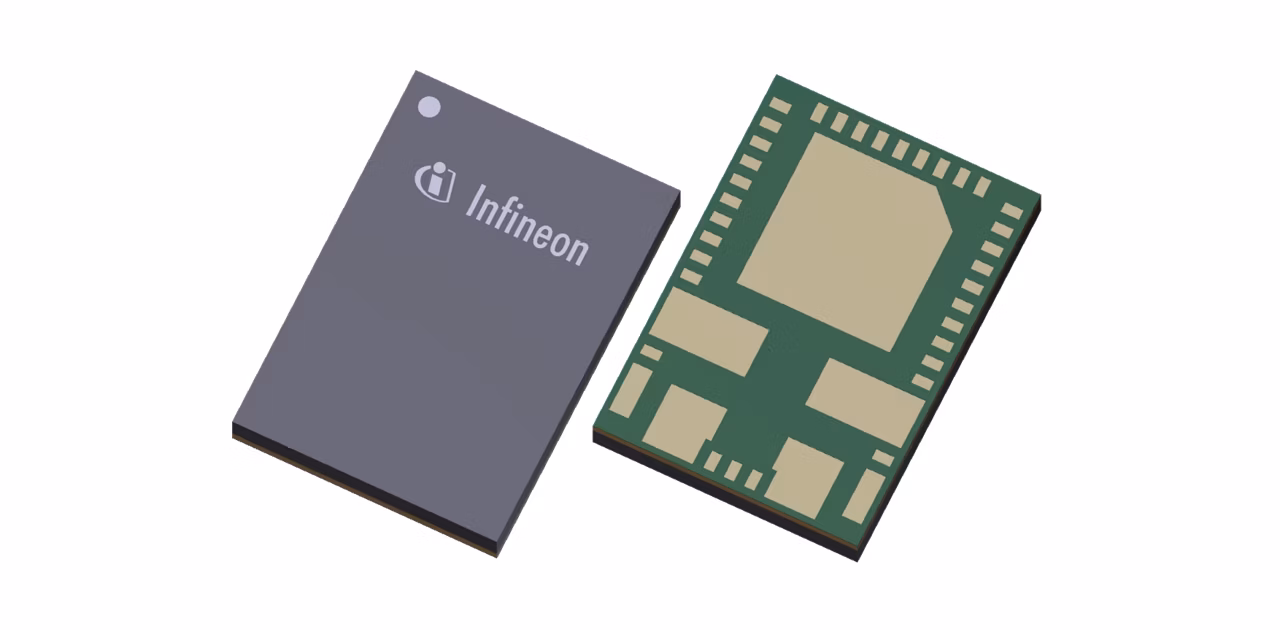

CYPD7197-40BFXST
  • CYPD7197-40BFXST

CYPD7197-40BFXST

Active and preferred

CYPD7197 is a highly integrated USB Type-C Power Delivery solution for automotive applications, featuring a buck-boost controller, 4 FETs, and a 32-bit Arm® Cortex®-M0 processor

Infineon Technologies CYPD7197-40BFXST Product Info

16 April 2026 0

Parameters

# of ports

Single-Port

Applications

HU and RSC

Family

EZ-PD™ CCG7S Auto

Flash

128 Byte

GPIOs

13

Operating Temperature range

-40 °C to 105 °C

Operating Voltage range

4 V to 24 V

Package Type

40-lead LGA

Peak Reflow Temp

260 °C

Processor Type

ARM® Cortex®-M0

Product Description

Automotive single-port USB Type-C PD with a buck-boost controller and FETs

Protection features (OVP, OCP, SCP and ESD)

Y

Software Tools

ModusToolbox™

SRAM

16 Byte

Temperature grade

Automotive Grade-S

USB Standard

USB-PD 3.2

VBUS Short Protection

Y

VCONN FET

Y

Features

  • Supports 1 USB PD port
  • PD 3.2 with PPS and AVS
  • Configurable resistors Rp and Rd
  • Integrated 100 mW VCONN power supply
  • 1x buck boost controller + 4x FETs
  • 1x legacy/proprietary charging block
  • Sytem-level fault protection
  • Targeting of support 27W
  • Up to 13 GPIOs
  • 48 MHz Arm® Cortex®-M0 CPU
  • 40-pin LGA, wettable flank, AEC-Q100
  • Packing: tape and reel

Description

  • PD3.2 compliant library
  • Programmable MCU, Flash, GPIOs
  • Moisture detection
