CDM10V
  • CDM10V

CDM10V

Active and preferred

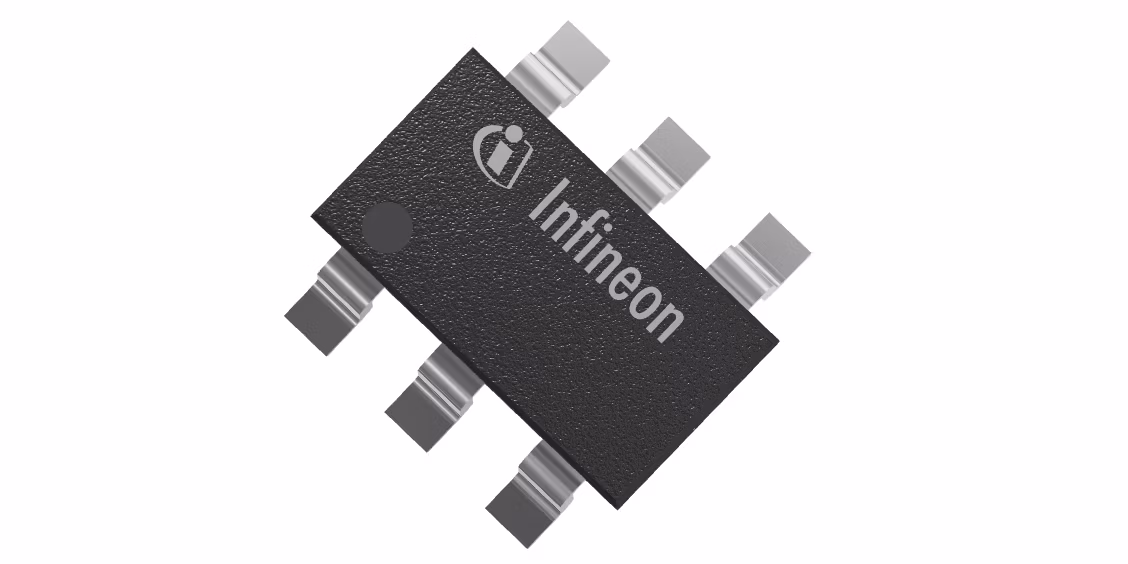

CDM10V is a fully integrated 0-10V dimming interface IC and comes in a 6pin SOT package to cover space requirements on small PCBs. The IC can be used to transmit analog voltage based signals from a 0-10V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a current based PWM signal to drive an external optocoupler.

Infineon Technologies CDM10V Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.2

Dimm-to-Off

Disabled/Enabled

Dimmer/Resistor Bias Current

50 µA, 100 µA, 200 µA, 500 µA

Dimming hysteresis

No

Duty Cycle min

1 %, 2 %, 5 %, 10 %

Iout

5 mA

Output Frequency (PWM)

0.2 kHz, 0.5 kHz, 1 kHz, 2 kHz

Type

0-10V Dimming Interface IC

VS

25 V

Features

  • Minimum duty cycle: 1%, 2% 5%, 10%
  • PWM output frequency 200 Hz-2kHz
  • Dimmer/resistor bias current 50µA-500µA
  • Dim-to-off: disabled/enabled

Description

  • Programmable
  • Transparent PWM mode
  • Reduced BOM and PCB space
  • Minimum variation from device to device
