ISK036N03LM5
  • ISK036N03LM5

ISK036N03LM5

Active and preferred

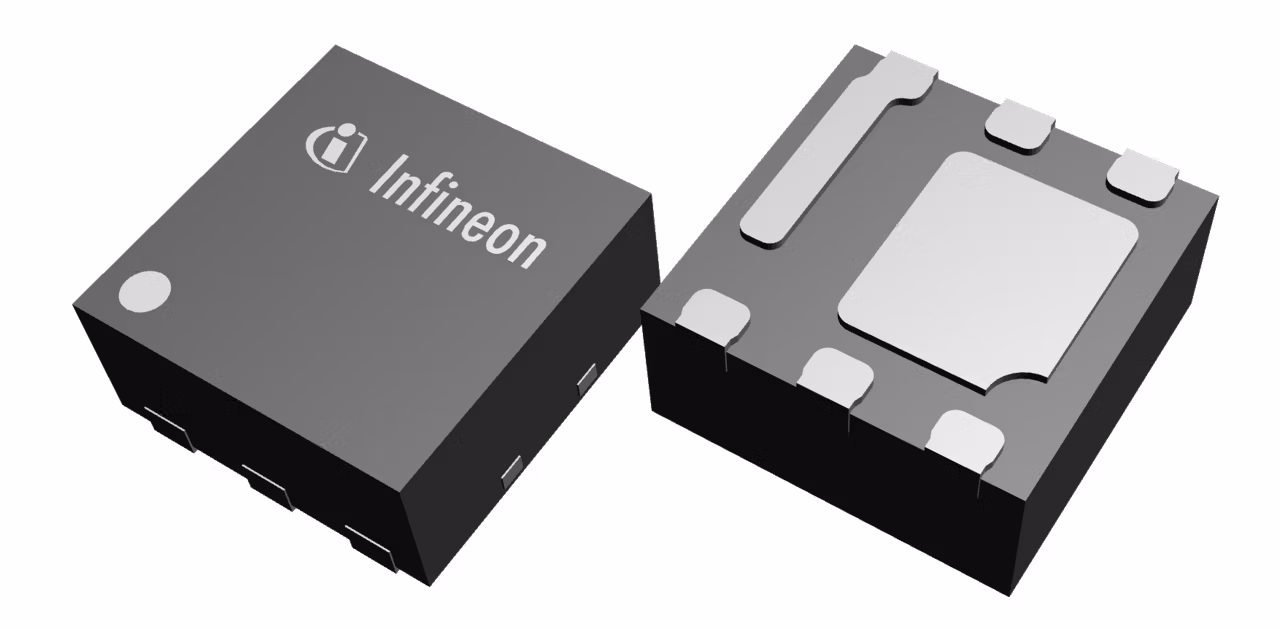

With the new BIC OptiMOS™ 5 in 25V and 30V product family Infineon offers a Best in class solution for efficiency in a small form factor, making it the perfect solution for applications such as wireless charging, load switches and low power DCDC applications.The small 4 mm2 footprint PQFN 2x2 package , combined with outstanding electrical performance contributes towards form factor improvement in end applications, featuring low RDS(on) of 3.6 mΩ.

Infineon Technologies ISK036N03LM5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.23

ID max

44 A

ID (@25°C) max

44 A

IDpuls max

174 A

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 2 x 2 (DFN2020)

Polarity

N

Ptot max

11 W

QG (typ @10V)

16.2 nC

QG (typ @4.5V)

7.7 nC

RDS (on) (@10V) max

3.6 mΩ

RDS (on) (@4.5V) max

4.6 mΩ

RDS (on) max

3.6 mΩ

Special Features

Logic Level

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Apps

Consumer electronics, Cordless power tools and outdoor power equipment

Features

  • Best-in-class products PQFN 2x2 package
  • Thermal resistance PQFN 2x2 package
  • Highest performance & power density
  • Lowest RDS(on) in PQFN 2x2
  • 100% Avalanche tested
  • Pb-free lead plating; RoHS compliant

Description

  • Optimized low voltage overshoots
  • Reduced system costs
  • Enables significant space saving
  • Compact PCB design
  • Small footprint for easy design
