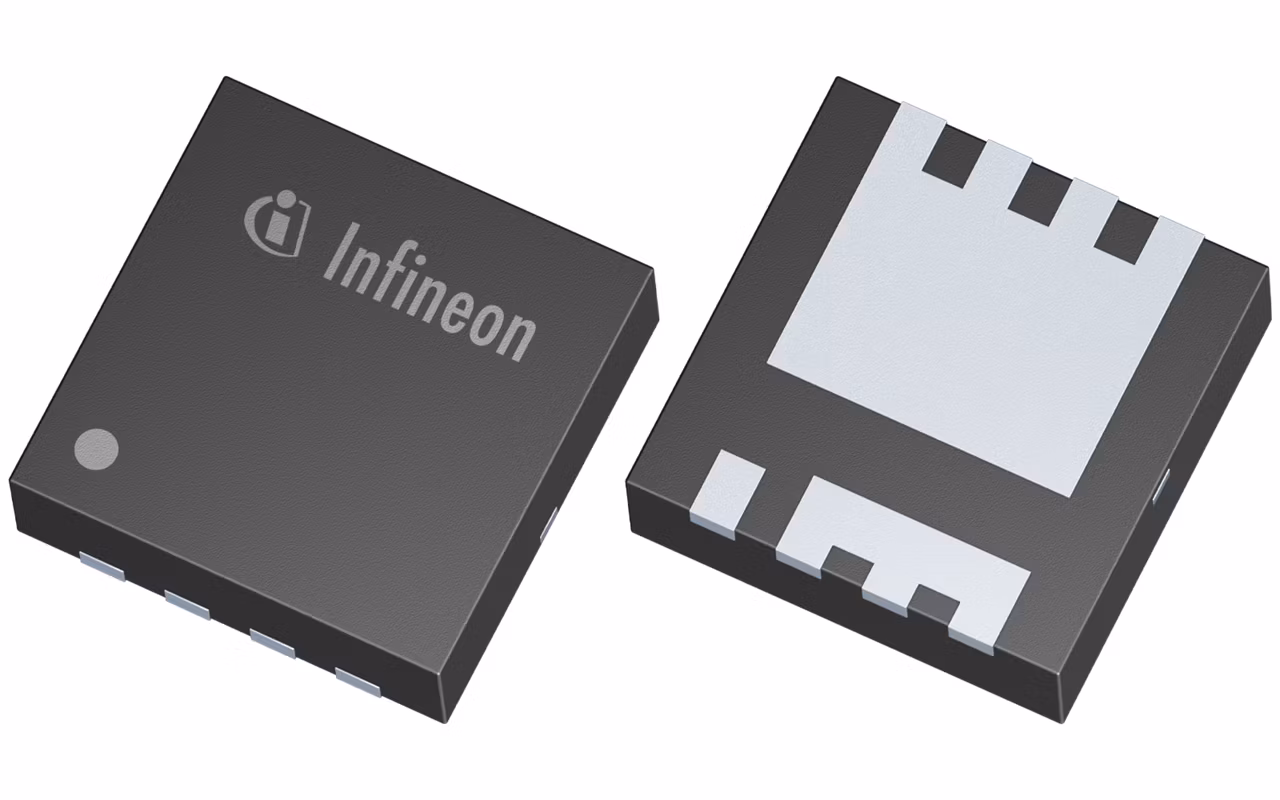

BSZ068N06NS
  • BSZ068N06NS

BSZ068N06NS

Active

OptiMOS™ 5 60V is optimized for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices are a perfect choice for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.

Infineon Technologies BSZ068N06NS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.26

Ciss

1200 pF

Coss

300 pF

ID (@25°C) max

63 A

IDpuls max

252 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

Ptot max

46 W

QG (typ @10V)

17 nC

RDS (on) (@10V) max

6.8 mΩ

RthJA max

60 K/W

RthJC max

2.7 K/W

Rth

2.7 K/W

VDS max

60 V

VGS(th) range

2.1 V to 3.3 V

VGS(th)

2.8 V

Apps

Medium voltage IBC (48 V), Telecommunications infrastructure, EV charging

Features

  • Optimized for synchronous rectification
  • 40% lower RDSon vs alternative devices
  • 40% better FOM over similar devices
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
