IGT65R035D2
  • IGT65R035D2

IGT65R035D2

Active and preferred

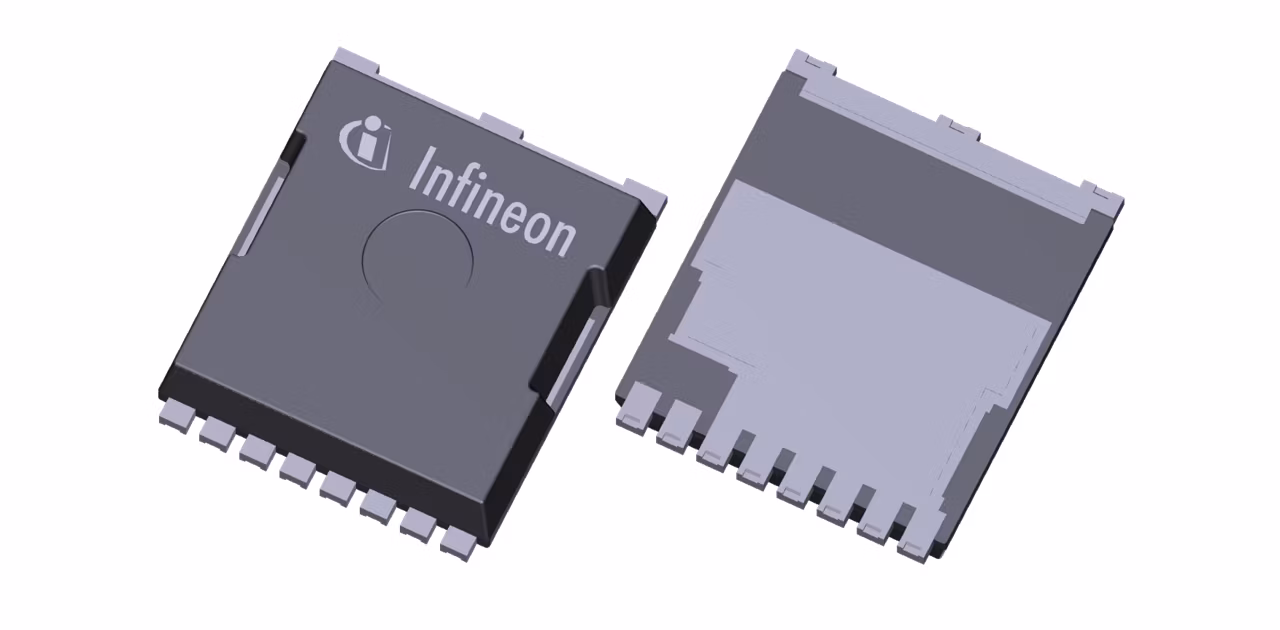

The IGT65R035D2 GaN power transistor allows for increased efficiency at high-frequency operation. As part of the CoolGaN™ 650 V G5 family, it meets the highest quality standards, enabling highly reliable designs with superior efficiency. Housed in a bottom-side cooled TOLL package, it is designed for optimal power dissipation in various industrial applications.

Infineon Technologies IGT65R035D2 Product Info

16 April 2026 0

Parameters

Family

CoolGaN™ Transistor 650 V G5

Green

RoHS compliant, Halogen free

ID (@25°C) max

49 A

IDpuls (@25°C) max

97 A

Package

TOLL

Planned to be available until at least

2035

QG

7.7 nC

Qualification

Industrial

RDS (on) max

42 mΩ

RDS (on) (typ)

35 mΩ

VDS max

650 V

Apps

Data center power solutions, AC-DC power conversion for telecommunications infrastructure, EV charging, Photovoltaic, Industrial power supplies

Features

  • 650 V e-mode power transistor
  • Ultrafast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge, low output charge
  • Superior commutation ruggedness
  • Low dynamic RDS(on)
  • High ESD robustness: 2 kV HBM - 1 kV CDM
  • Bottom-side cooled package
  • JEDEC qualified (JESD47, JESD22)

Description

  • Supports high operating frequency
  • Enables highest system efficiency
  • Enables ultrahigh power density designs
  • Supports BOM cost savings
