BSZ033NE2LS5
  • BSZ033NE2LS5

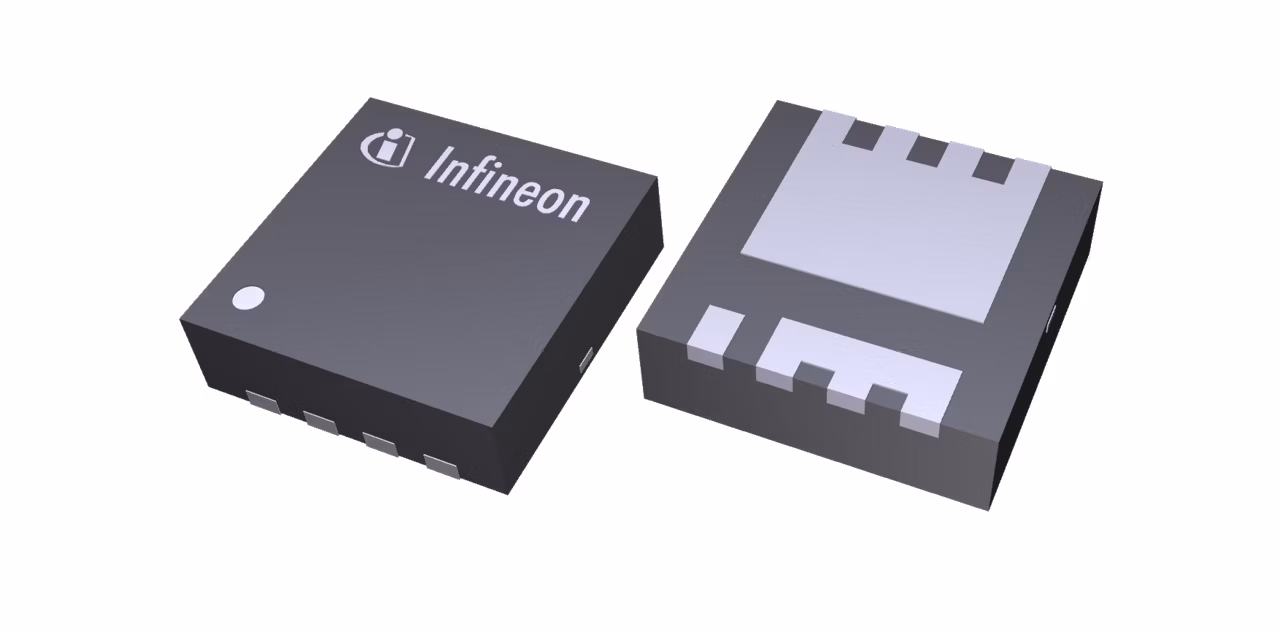

BSZ033NE2LS5

With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ033NE2LS5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.32

Ciss

910 pF

Coss

390 pF

ID (@25°C) max

77 A

IDpuls max

308 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

QG (typ @4.5V)

6.3 nC

QG (typ @10V)

13.6 nC

RDS (on) (@4.5V) max

4.1 mΩ

RDS (on) (@4.5V LL) max

4.1 mΩ

RDS (on) (@10V) max

3.3 mΩ

RthJA max

60 K/W

RthJC max

4.1 K/W

Rth

4.1 K/W

VDS max

25 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Highest power density with PQFN 3.3x3.3
  • Reduction of overall system costs
  • Operation at high-switching frequency
