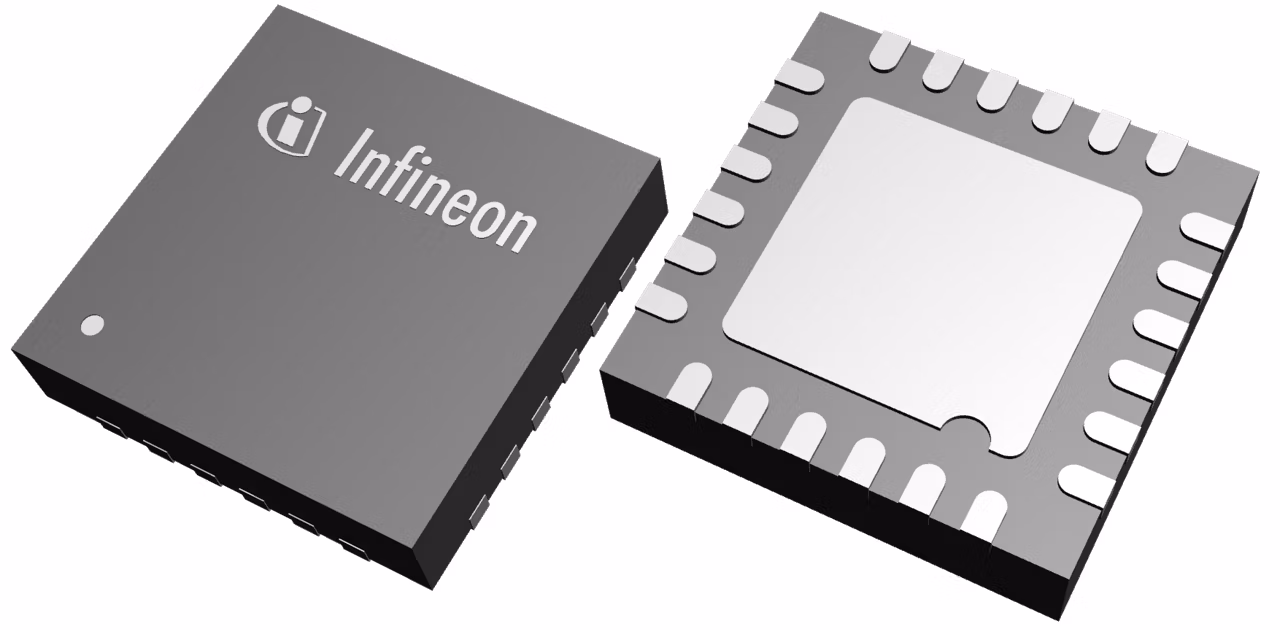

BGAP3D30H
  • BGAP3D30H

BGAP3D30H

Active and preferred

The BGA P3D30H is a 3.1 to 4.2 GHz mid-band SiGe RF driver amplifier optimized for 5G massive MIMO base stations and small cells. It provides a high OP1dB of 31 dBm and features single-ended, internally matched 50 Ω in-/output. With high linearity, gain flatness of <0.35 dB, and excellent RF performance can serve as a pre-driver or power amplifier. This device is suited for improving linearization in driven power amplifiers for low-power applications.

Infineon Technologies BGAP3D30H Product Info

16 April 2026 0

Parameters

ACLR

-47 dBc

Frequency Range range

3.1 GHz to 4.2 GHz

Gain Flatness max

0.35 dB

Gain

38.5 dB

Noise Figure

3.3 dB

OIP3

41.1 dBm

OP1dB

31.4 dBm

Supply Voltage

5 V

Features

  • Supply voltage: 3.3 V
  • Gain Flatness: 0.35 dB
  • High Gain: 38.5 dB
  • High OP1dB: 31 dBm
  • Mid-band: 3.1 - 4.2GHz
  • Packaging: QFN

Description

  • BiCMOS tech for optimized performance
  • High gain and power, reducing components
  • Wide BW 3.1-4.2 GHz with gain flatness
  • Matched to 50 Ω, no external matching
  • Turnable linearity performance
