TLS820D0EL V33
  • TLS820D0EL V33

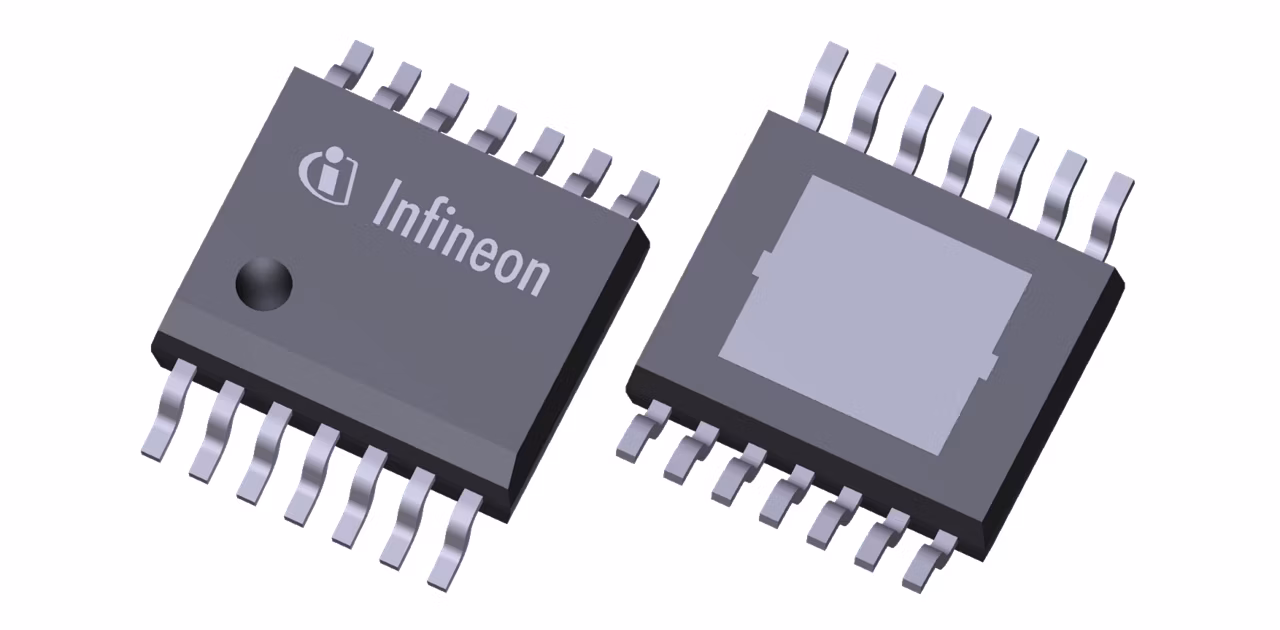

TLS820D0EL V33

The LDO regulators are ideal for automotive systems, with an input voltage range of 3V to 40V and a low quiescent current of 40μA. They offer a maximum output current of 200mA, with 2% output voltage accuracy over temperature. The new loop concept provides fast regulation and stability, requiring only a small 1μF ceramic capacitor at the output. Additionally, they exhibit a very low typical dropout voltage of only 80mV at currents below 100mA.

Infineon Technologies TLS820D0EL V33 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS820D0xx

Dropout Voltage

80 mV

Early Warning

No

Enable (=Inhibit)

Yes

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 40 V

Output Current max

200 mA

Output Voltage Type

3.3 V

Over Voltage Protection

No

Planned to be available until at least

n.a

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

40 µA

Regulator Type

High Performance

Reset

Yes

Status Output

No

Watchdog

No

Features

  • Wide Input Voltage Range from 3.0 V to 40 V
  • Fixed Output Voltage 3.3 V
  • Output Voltage Precision ≤ ± 2 %
  • Output Current Capability up to 200 mA
  • Ultra Low Current Consumption typ. 40 µA
  • Very Low Dropout Voltage typ. 80 mV@100 mA
  • Stable with Ceramic Output Capacitor of 1 µF
  • Selectable Reset Delay at Power-On
  • Adjustable Reset Threshold down to 2.50 V
  • Enable, Undervoltage Reset, Overtemperature Shutdown
  • Output Current Limitation
  • Wide Temperature Range
  • Green Product (RoHS compliant)
  • AEC Qualified

Description

  • Very wide input voltage range
  • Fast voltage regulation loop
  • Supports voltage cranking application
  • Very low dropout
