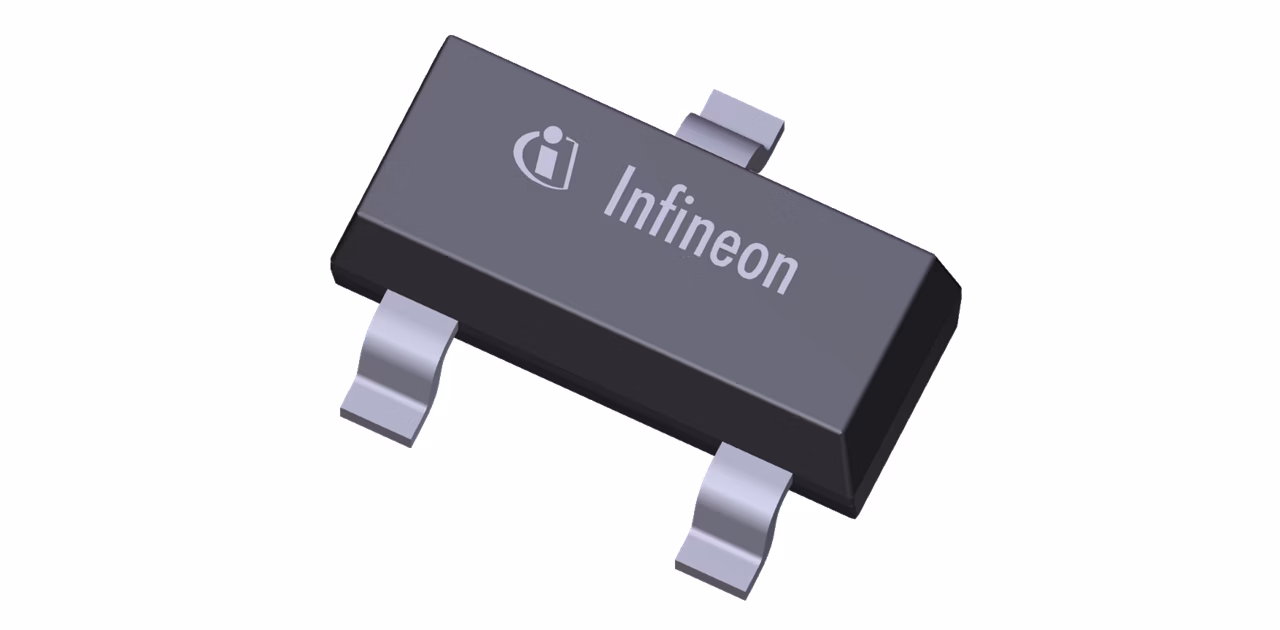

BAR63-06
  • BAR63-06

BAR63-06

This Infineon RF PIN diodes provides fast switching high-voltage handling capabilities, low power loss and is mostly suited for frequencies up to 3 GHz. Its low capacitance and low forward resistance make it suitable for a diversity of switching applications, simplify design-in and support designers in creating versatile end-solutions.

Infineon Technologies BAR63-06 Product Info

16 April 2026 0

Parameters

C @VR=0V

0.3 pF

Configuration

Common cathode pair

IF max

100 mA

RF

1 Ω

trr

75 ns

VR max

50 V

Features

  • Low capacitance C = 0.33 pF (typical) at voltage VR = 0 V and frequency f ≥ 1 GHz
  • Low forward resistance RF = 2.1 Ω (typical) at forward current IF = 5 mA and frequency f = 100 MHz
  • Charge carrier lifetime τ = 75 ns (typical)
  • Industry standard SOT23-3 package (2.9 mm x 2.4 mm x 1 mm)
  • Pb-free, RoHS compliant and halogen-free
