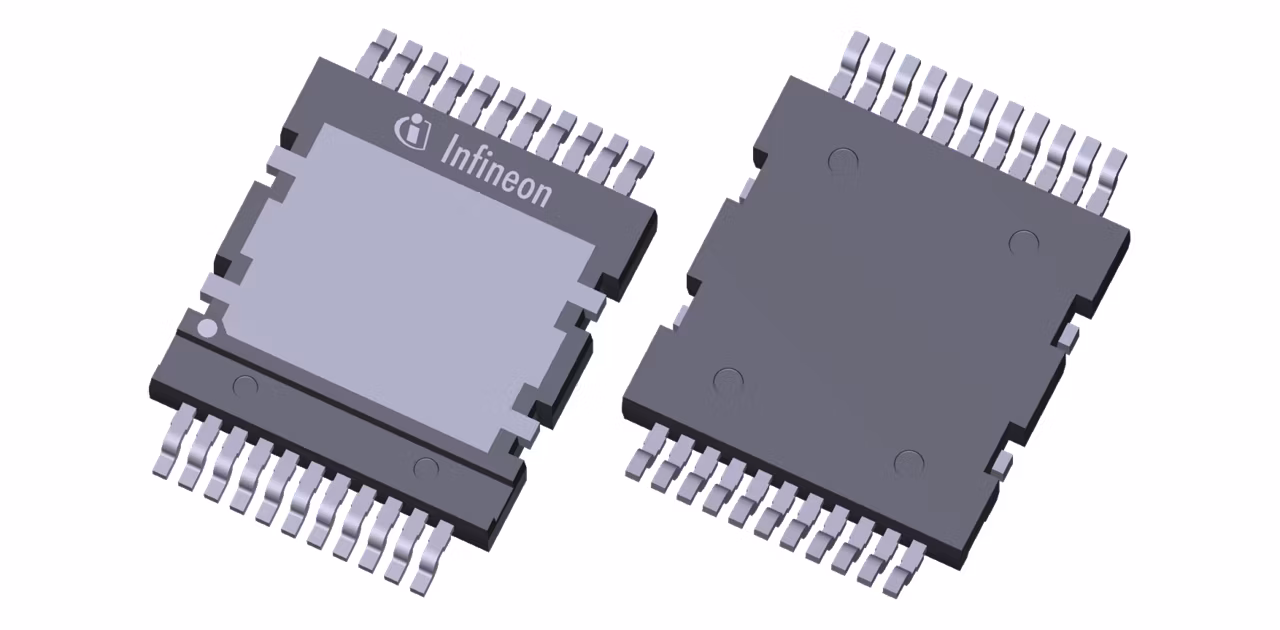

AIMCQ120R020M1T
  • AIMCQ120R020M1T

AIMCQ120R020M1T

Active and preferred

The CoolSiC™ Automotive MOSFET 1200 V in Q-DPAK package is tailored to address OBC/DC-DC applications for 800V Automotive architecture. Leveraging Top-Side-Cooling (TSC) technology, it can provide customers with an outstanding thermal performance, easier assembly and reduced system cost. Compared to back-side cooling, TSC provides an optimized PCB assembly, thus eliminating parasitic effects and providing much lower stray inductances.

Infineon Technologies AIMCQ120R020M1T Product Info

16 April 2026 0

Parameters

ID (@25°C) max

116 A

Operating Temperature range

-55 °C to 175 °C

Package

PG-HDSOP-22

Polarity

N

Qualification

Automotive

RDS (on) (@ Tj = 25°C)

19 mΩ

Technology

CoolSiC™ G1

VDS max

1200 V

Features

  • 0V turn-off
  • Creepage  4.8mm
  • Symmetrical lead layout
  • .XT technology

Description

  • Lower package parasitics
  • Lower switching losses
  • Simplified design
  • Optimized PCB assembly
