AIKQ100N60CT
  • AIKQ100N60CT

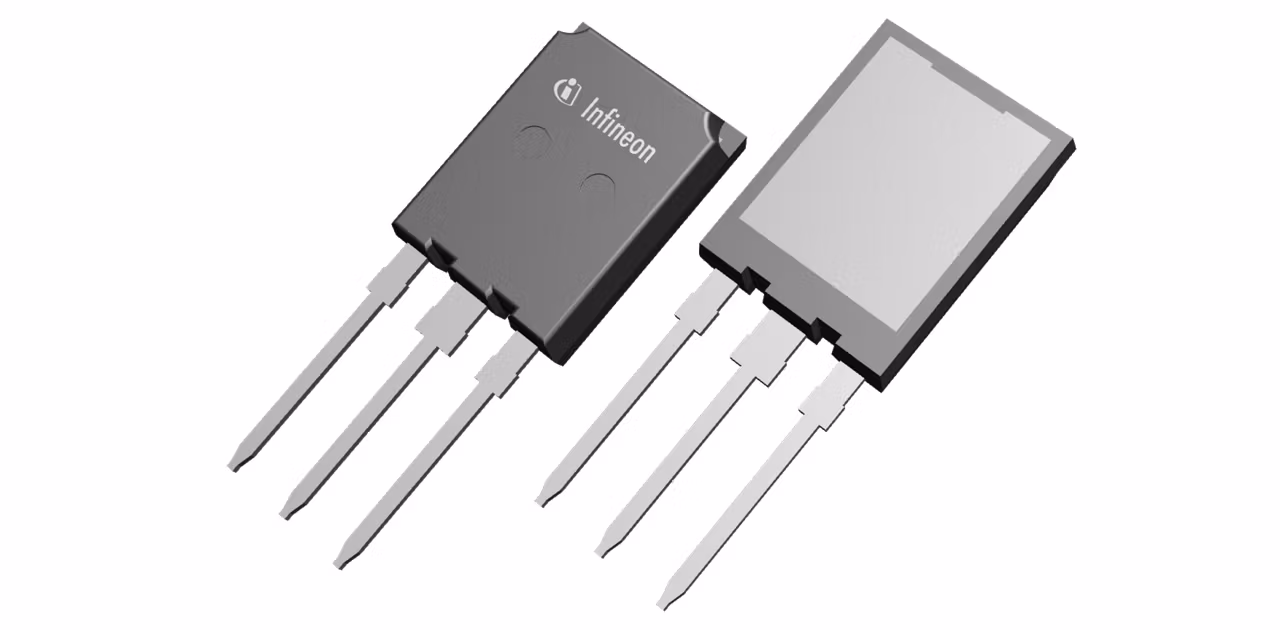

AIKQ100N60CT

Infineon's Discrete IGBT TRENCHSTOP™ and Fieldstop technology for 600V Automotive applications offers very tight parameter distribution, high ruggedness, temperature stable behavior and very high switching speed.

Infineon Technologies AIKQ100N60CT Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

8.26

Co-pack diode technology

EMCON3

Eoff (Soft Switching)

2.5 mJ

Eoff (Hard Switching)

3.7 mJ

Eon

3.1 mJ

IC (@ 25° ) max

160 A

ICpuls max

400 A

IF max

160 A

IFpuls max

400 A

Irrm

23 A

Launch year

2017

Package

TO-247-3

Ptot max

714 W

QGate

610 nC

Qrr

2800 nC

Reflow Solderable

No

Switching Frequency

0-30 KHz

td(off)

290 ns

td(on)

30 ns

Technology

IGBT TRENCHSTOP™

tf

31 ns

tr

38 ns

Type

IGBT + Diode

VCE(sat)

1.5 V

VCE max

600 V

VF

1.65 V

Voltage Class max

600 V

Apps

Automotive secondary power distribution unit

Features

  • Very low V CEsat 1.5V (typ.)
  • Maximum junction temperature 175°C
  • Short circuit withstand time 5µs
  • Positive temperature coefficient in V CEsat
  • Low EMI
  • Low gate charge
  • Green package
  • Very soft, fast recovery anti-parallel Emitter Controlled HE diode
