38DN06B02
  • 38DN06B02

38DN06B02

Active and preferred

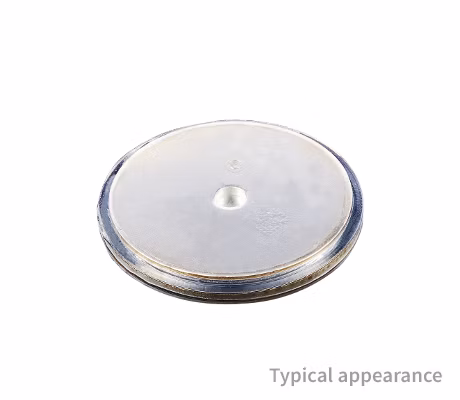

Housingless Welding Diode 600 V, 5.8 kA*/ 6.5 kA ** with a diameter of 38 mm. Designed with improved losses for medium frequency resistance welding and high current rectifier applications. The low on-state voltage allows very high forward current of around 5.8 kA continuously. The 38DN06B02 is mechanically compatible to 38DN06 and very compact with a diameter of 38 mm and a height of 4 mm. *IFAV @ Tc= 100°C **IFAV @ Tc= 85°C

Infineon Technologies 38DN06B02 Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

15 to 30

Configuration

Rectifier Diodes / Welding Diodes

Housing

Disc dia 38mm height 4,0 mm

I(FSM) max

32300 A

IFAVM/TC [A/°C] (@180° el sin)

5820/100

IFAVM/Tc

5820/100 (180° el sin)

IFSM [A] (@10ms, Tvj max)

32300

rT [mΩ] (@Tvj max) max

0.049

RthJC [K/kW] (@180° el sin) max

9.6

Tvj [°C] max

180

VF/IF [V/kA] (@Tvj max)

0,96/4.5

VRRM [V]

600

VRRM max

600 V

VT0 [V] (@Tvj max) max

0.74

∫I2dt [A²s · 103] (@10ms, Tvj max)

5200

Features

  • High forward current up to5.8 kA
  • Low losses
  • Highest reliability
  • Best-in-class power cycling capabi.
