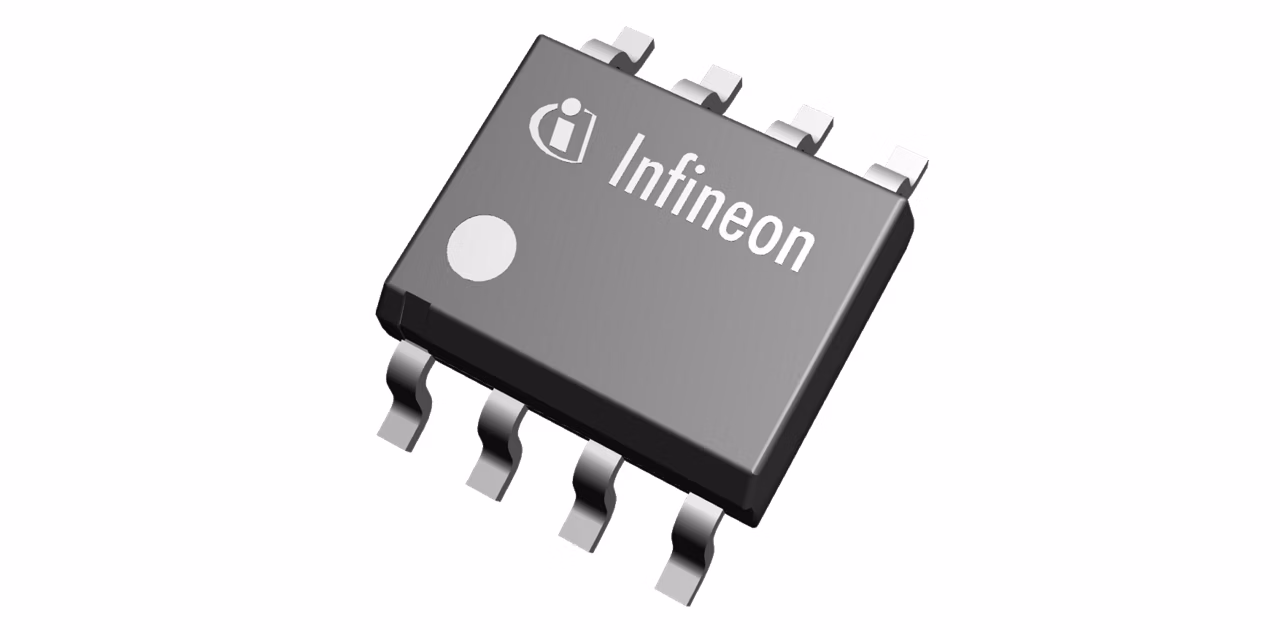

TLE7250SJ
  • TLE7250SJ

TLE7250SJ

Introducing the TLE7250, driving signals to the CAN bus, safeguarding the microcontroller, and supporting CAN FD with data rates up to 2 MBit/s. With excellent passive behavior and Infineon SPT providing ESD and electromagnetic immunity, it's ideal for mixed supply HS CAN networks, including TLE7250SJ. AEC qualified and tailored for the automotive environment, it features three operating modes and optimized output slew rates.

Infineon Technologies TLE7250SJ Product Info

16 April 2026 0

Parameters

Additional Features

NRM, NEN

Base Product

TLE725x

Bus Wake-Up Capability

No

Family

CAN FD 2MBit/s

Features

Receive Only Mode, NEN, NRM

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 12 µA at 5 V standby

Standards

ISO11898-2

Supply Voltage

5 V

Transmission Rate max

2 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

None

Features

  • Fully compliant to ISO11898-2
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low electromagnetic emission (EME)
  • Excellent ESD robustness
  • Guaranteed loop delay symmetry to support CAN FD data frames up to 2 MBit/s
  • Extended supply range on V cc supply
  • CAN short circuit proof to ground, battery and V cc
  • TxD time-out function
  • Low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients
  • Receive-only mode and power-save mode
  • Green Product (RoHS compliant)
  • Two package variants: PG-DSO-8 and PG-TSON-8
  • AEC Qualified
