2EDS9265H
  • 2EDS9265H

2EDS9265H

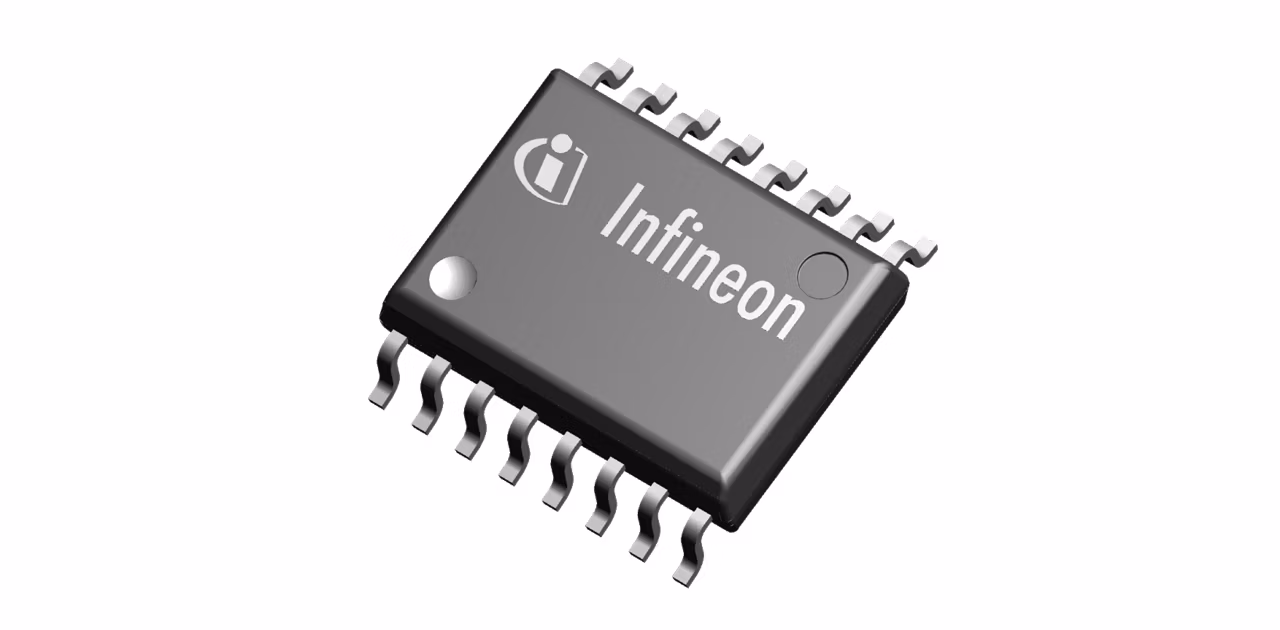

The EiceDRIVER™ 2EDS9265H is a reinforced isolated gate-driver IC in a 300mil DSO-16 package, designed for the use in high-performance power conversion applications. The 4A/8A source/sink dual-channel gate driver allows for efficiency increases in CoolSiC™ MOSFETs 650V half bridges.

Infineon Technologies 2EDS9265H Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

High-side and low-side, High-side, Half-Bridge

Input Vcc range

3 V to 3.3 V

Input-side supply

20 V

Isolation Type

Galvanic isolation - Reinforced

Output Current (Sink)

8 A

Output Current (Source)

4 A

Qualification

Industrial

Turn Off Propagation Delay

37 ns

Turn On Propagation Delay

37 ns

VBS UVLO (On)

13.7 V

VCC UVLO (On)

2.85 V

Voltage Class

650 V

Apps

Automotive, Light electric vehicle solutions

Features

  • Fast power switching w/ accurate timing
  • Optimized low cost system BOM
  • Robust against switching noise
  • Output-to-output channel isolation
  • Input-to-output channel isolation

Description

  • Efficiency gain and lower losses
  • Protection and safe operation
  • Flexible configurations
  • Regulatory safety
