2EDN7534F
  • 2EDN7534F

2EDN7534F

Active and preferred

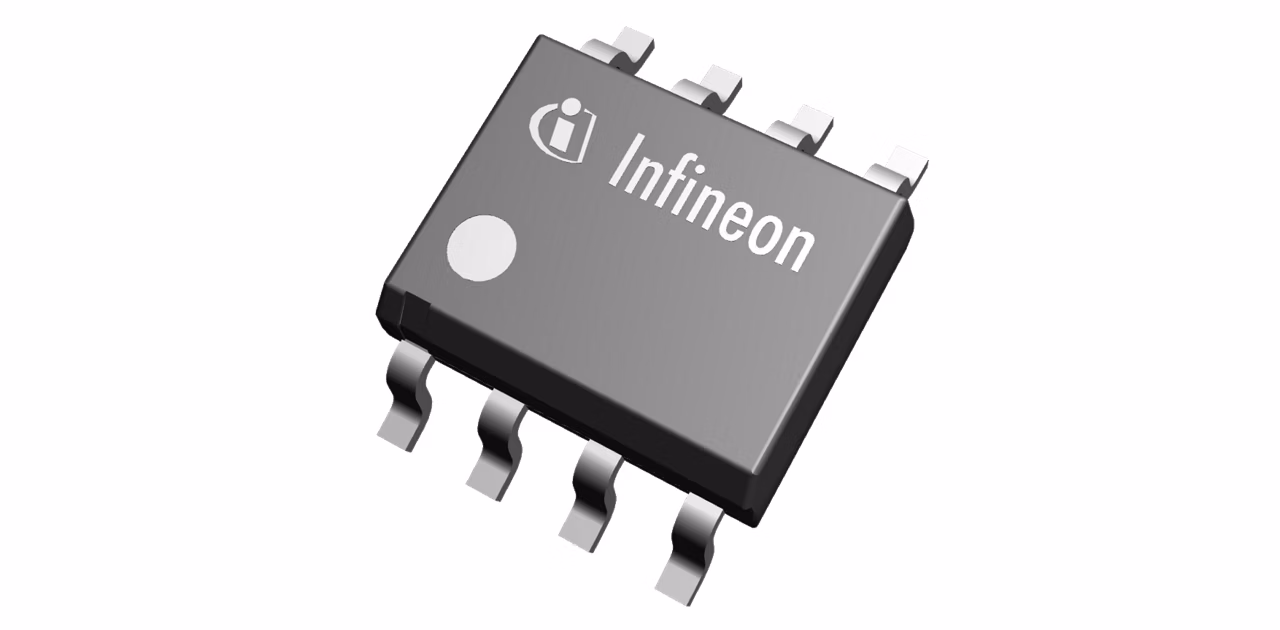

The EiceDRIVER™ 2EDN family is offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pins SOT23 and TSNP package. High-output-current capability, tight-timing specifications, and reduced output start-up and shut-down times, make the 2EDN family the first choice for many fast-switching applications. Active output clamping shortens the startup time of bootstrapped designs.

Infineon Technologies 2EDN7534F Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

Low-side

Input Vcc range

4.2 V to 20 V

Isolation Type

Non-isolated

Output Current (Source)

5 A

Output Current (Sink)

5 A

Qualification

Industrial

Turn Off Propagation Delay

19 ns

Turn On Propagation Delay

19 ns

VBS UVLO (On)

4.2 V

VBS UVLO (Off)

3.9 V

Voltage Class

20 V

Apps

Telecommunications infrastructure

Features

  • Up to ±5 A source/sink currents
  • 19 ns typ. propagation delay
  • +6/-4 ns propagation delay accuracy
  • 1.8 µs output start-up time
  • 500 ns output shut-down time
  • Active output voltage clamping
  • 5 A reverse current robustness
  • 4 V and 8 V UVLO options
  • Package options:8-pin DSO, TSSOP, WSON
  • 6-pin SOT23

Description

  • High power efficiency
  • Instant FETs protection in abnormal op
  • Safety margin drives pulse transformer
