TLE6368G2

Infineon Technologies TLE6368G2 Product Info

16 April 2026 0

Base Product	TLE6368
Classification	n.a
Comments	SPI, Automotive PMIC, Vin up to 60V, 3 linear post regulators (5V, 3.3/2.6V, 3.3/2.6V) and 6 voltage trackers (5V)
Compatible Microcontrollers	AURIX™ TC3x
Enable (=Inhibit)	No
Iout max	500 mA, 350 mA, 17 mA, 1 mA, 800 mA
Iq	10 µA
ISO 26262	QM
Operating Temperature range	-40 °C to 150 °C
Operating Voltage range	5.5 V to 60 V
Over Voltage Protection	No
Package	PG-VQFN-48
Planned to be available until at least	n.a
Product Group	PMIC
Qualification	Automotive
Regulator Type	Buck
Reset	Yes
Target Application	Safe Control
Tolerance	2%
VQ (multiple)	5 V (trackers), 5.0 V, 2.4 V, 2.6 V / 3.3 V
Watchdog	Window-WD

High efficiency Pre-/Post-regulator architecture
Wide input voltage range from 5.5V to 60V
Stand-by mode with low current consumption
Suitable for standard 12V- and 24V-PowerNets
Step down converter as pre-regulator: 5.5V / 1.5A
Step down slope control for lowest EME
Switching loss minimization
Three high current linear post-regulators with selectable output voltages: 5V / 800mA., 3.3V or 2.6V / 500mA, 3.3V or 2.6V / 350mA
Six independent voltage trackers (followers): 5V / 17mA each
Stand-by regulator with 1mA current capability
Three independent undervoltage detection circuits (e.g. reset, early warning) for each linear post-regulator
Power on reset functionality
Window-Watchdog
Tracker control and diagnosis by SPI
All outputs protected against short-circuit

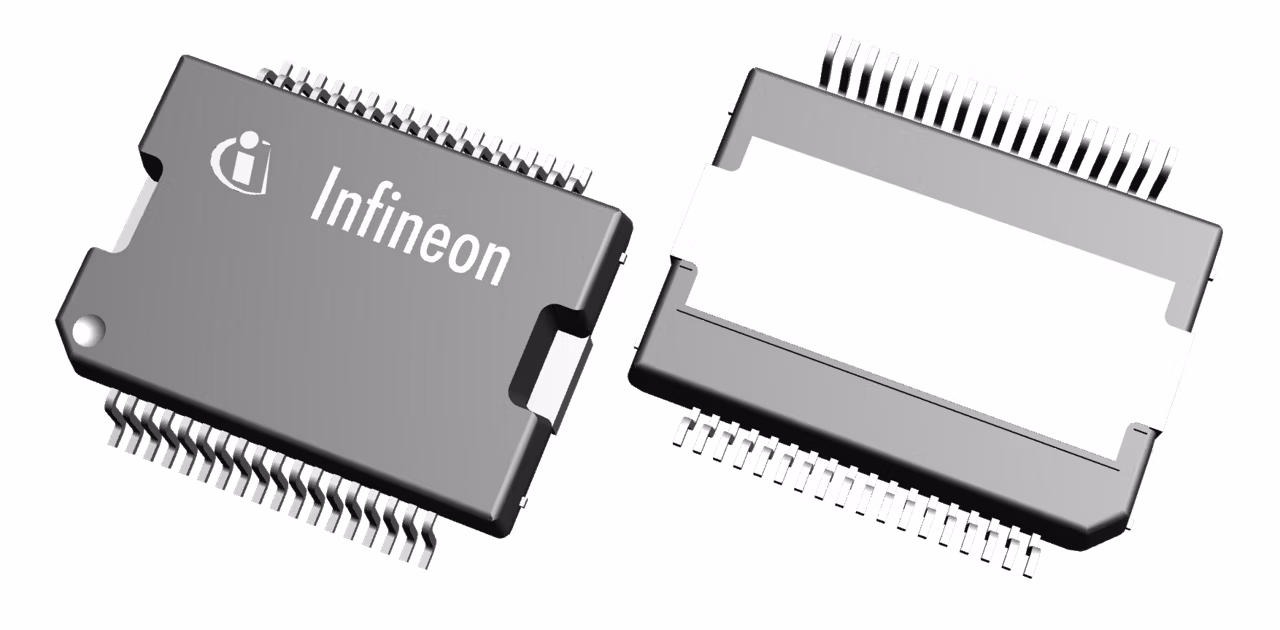

Power PG-DSO-36-26 package
Green (RoHS compliant) version of TLE6368-G2
AEC qualified
