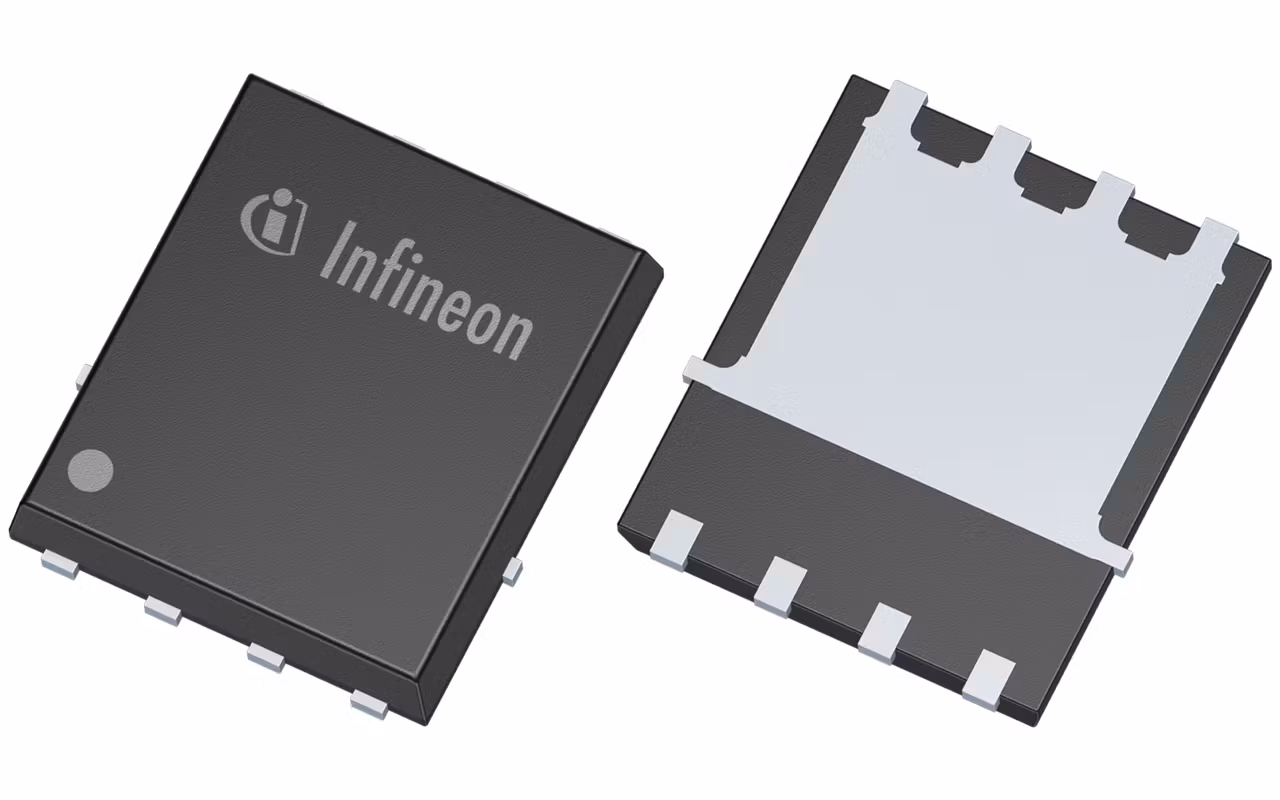

BSC060P03NS3E G
  • BSC060P03NS3E G

BSC060P03NS3E G

Active and preferred

Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Infineon Technologies BSC060P03NS3E G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.35

Ciss

4530 pF

Coss

2110 pF

ID (@25°C) max

-100 A

IDpuls max

-200 A

Operating Temperature max

150 °C

Operating Temperature min

-55 °C

Package

SuperSO8 5x6

Polarity

P

Ptot max

83 W

QG (typ @10V)

61 nC

RDS (on) (@10V) max

6 mΩ

Rth

1.5 K/W

VDS max

-30 V

VGS(th)

-2.5 V

Apps

AI and data center, Consumer Wearables

Features

  • Enhancement mode
  • Normal, logic or super logic level
  • Avalanche rated
  • Pb-free lead plating; RoHS compliant
