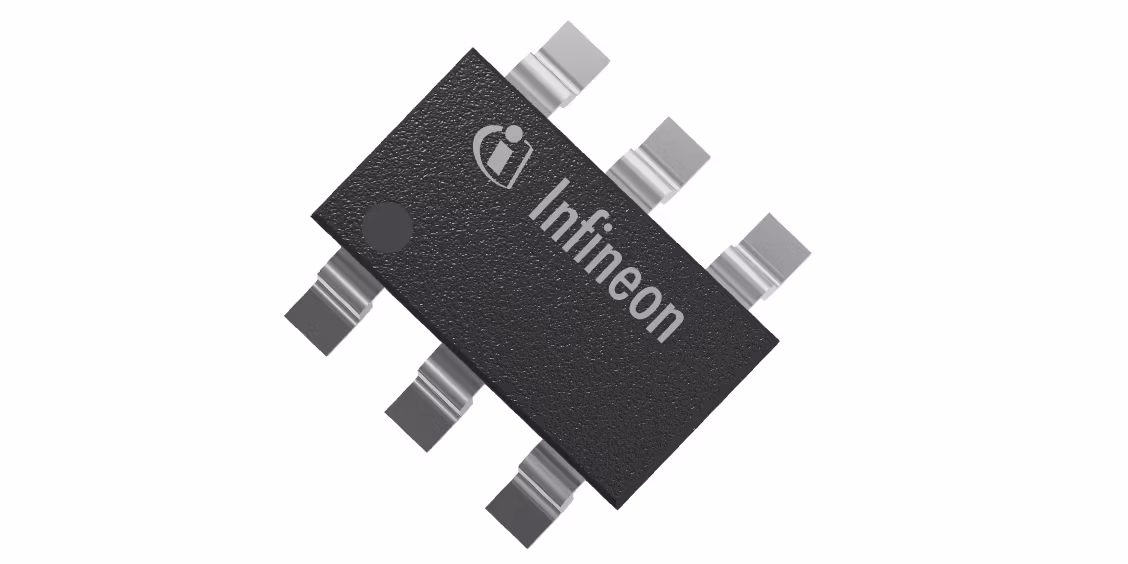

1ED44173N01B
  • 1ED44173N01B

1ED44173N01B

Active and preferred

EiceDRIVER™ 25 V single-channel low-side non-inverting gate driver IC with typical 2.6 A source and sink currents in a tiny 6-lead PG-SOT23 package enabled by combining the fault output and enable functions into a single pin. It offers cost and space savings by an integrated comparator and enables a robust monolithic design through our proprietary latch immune CMOS technologies while realizing best-in-class fault reporting accuracy .

Infineon Technologies 1ED44173N01B Product Info

16 April 2026 1

Parameters

Channels

1

Configuration

Low-side

Input Vcc range

8.6 V to 20 V

Isolation Type

Non-isolated

Output Current (Sink)

2.6 A

Output Current (Source)

2.6 A

Package

PG-SOT23-6

Product Name

1ED44173N01B

Qualification

Industrial

Turn Off Propagation Delay

34 ns

Turn On Propagation Delay

34 ns

VBS UVLO (Off)

7.3 V

VBS UVLO (On)

8 V

VCC UVLO (Off)

7.3 V

VCC UVLO (On)

8 V

Voltage Class

25 V

Apps

Refrigerators and freezers, Residential air conditioning, Power conversion

Features

  • -0.246 V over-current threshold
  • Over-current detection
  • Single pin fault output & enable
  • Programmable fault clear time
  • Under voltage lockout for MOSFETs
  • CMOS Schmitt-triggere
