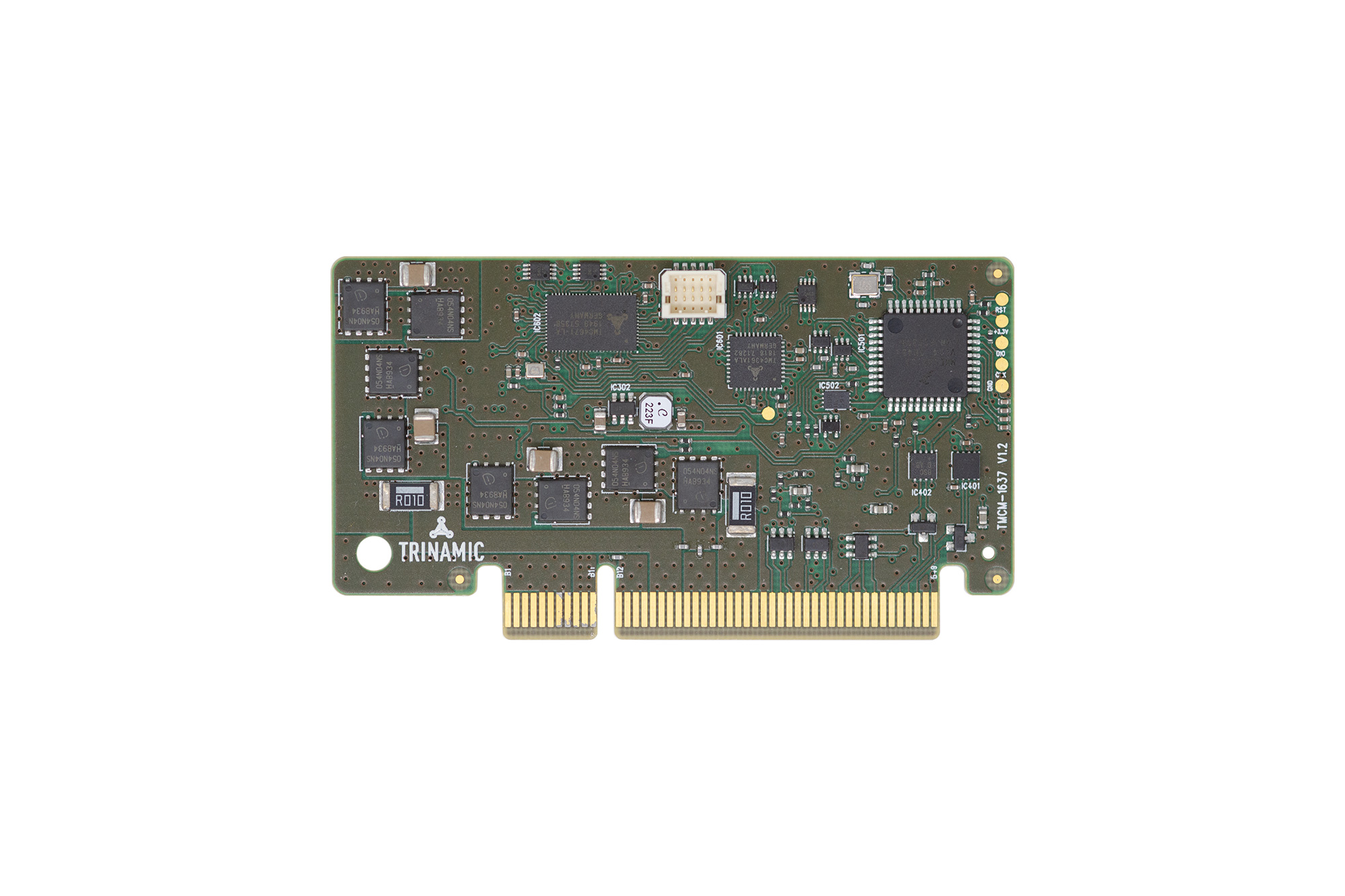

TMCM-1637

PRODUCTION

Plug-In servo drive 10 to 30V, 5A, S-shaped and SixPoint ramp controller with CAN, RS485 and S/D Interface

Analog Devices TMCM-1637 Product Info

10 February 2026 4

Features

Single axis controller/driver with field oriented control
+10 to 30V DC motor supply voltage
Up to 5A RMS motor current
RS485 and CAN interface

Single-ended ABN encoder interface
Hall sensor inputs
Step/direction inputs
Stop switch and home switch inputs
General purpose inputs and outputs

Part details & applications

The TMCM-1637 is a single axis field oriented motor controller/driver board. It supports single phase DC motors, two phase bipolar stepper motors and three phase BLDC motors with up to 5A RMS (7A peak) motor coil current. For motor commutation and position feedback, hall sensors or incremental ABN encoders can be used. For driver-only applications, the TMCM-1637 offers Step/Direction inputs. The TMCM-1637 is also equipped with two analog inputs (0 to 5V range), two digital inputs and two digital (TTL level) outputs. For communication, RS485 and CAN bus interfaces are available.

APPLICATIONS

Laboratory Automation
Manufacturing
Semiconductor Handling
Robotics
Factory Automation
Test & Measurement
Life Science
Biotechnology
Liquid Handling
