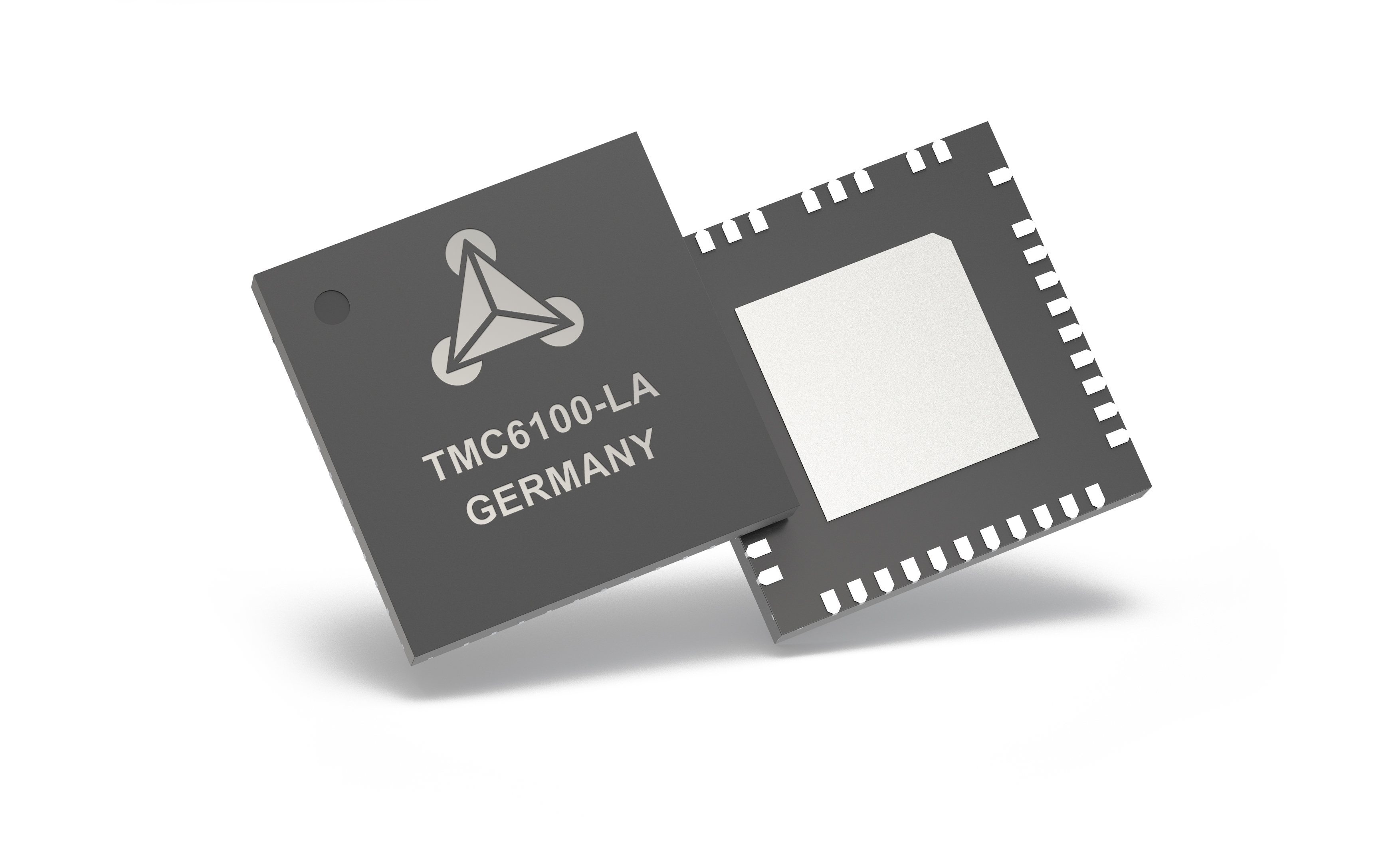

TMC6100

RECOMMENDED FOR NEW DESIGNS

Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current

Analog Devices TMC6100 Product Info

10 February 2026 6

Features

3-phase motors up to 100A coil current (external MOSFETs)
Voltage Range 8 to 60V DC
Gate Drive Programmable 0.5A / 1A / 1.5A
Full Protection and Diagnostics via SPI interface
Gate Off Drive with 1Ω (LS) / 1.3Ω (HS) safe hold off resistance
SPI & Stand-Alone operation
Optional BBM break-before-make logic for single line control

Charge Pump for 100% Duty Cycle operation
Programmable Short and Overload current threshold and retry
Programmable Control Interface with 3-line or 6-line drive
Full Protection & Diagnostics
Compact Size 7x7mm2 QFN package
Double Pin Distance for safe operation at high voltage

Part details & applications

The TMC6100 is a high-power gate-driver for PMSM servo or BLDC motors. Using six external MOSFETs it controls motors from Watt to Kilowatt. Software controlled drive strength allows insystem EME optimization. Programmable safety features like short detection and overtemperature thresholds together with an SPI interface for diagnostics allow robust and reliable designs. With the TMC6100, a minimum number of external components is required to build a rugged drive with full protection and diagnostics.

APPLICATIONS:

PMSM FOC drives and BLDC motors
Industrial Drives
Factory Automation
Lab Automation
Robotics
CNC machines
Textile Machines
Pumps
Surveillance Cameras
Home Automation
Printers
