PD-1260

PRODUCTION

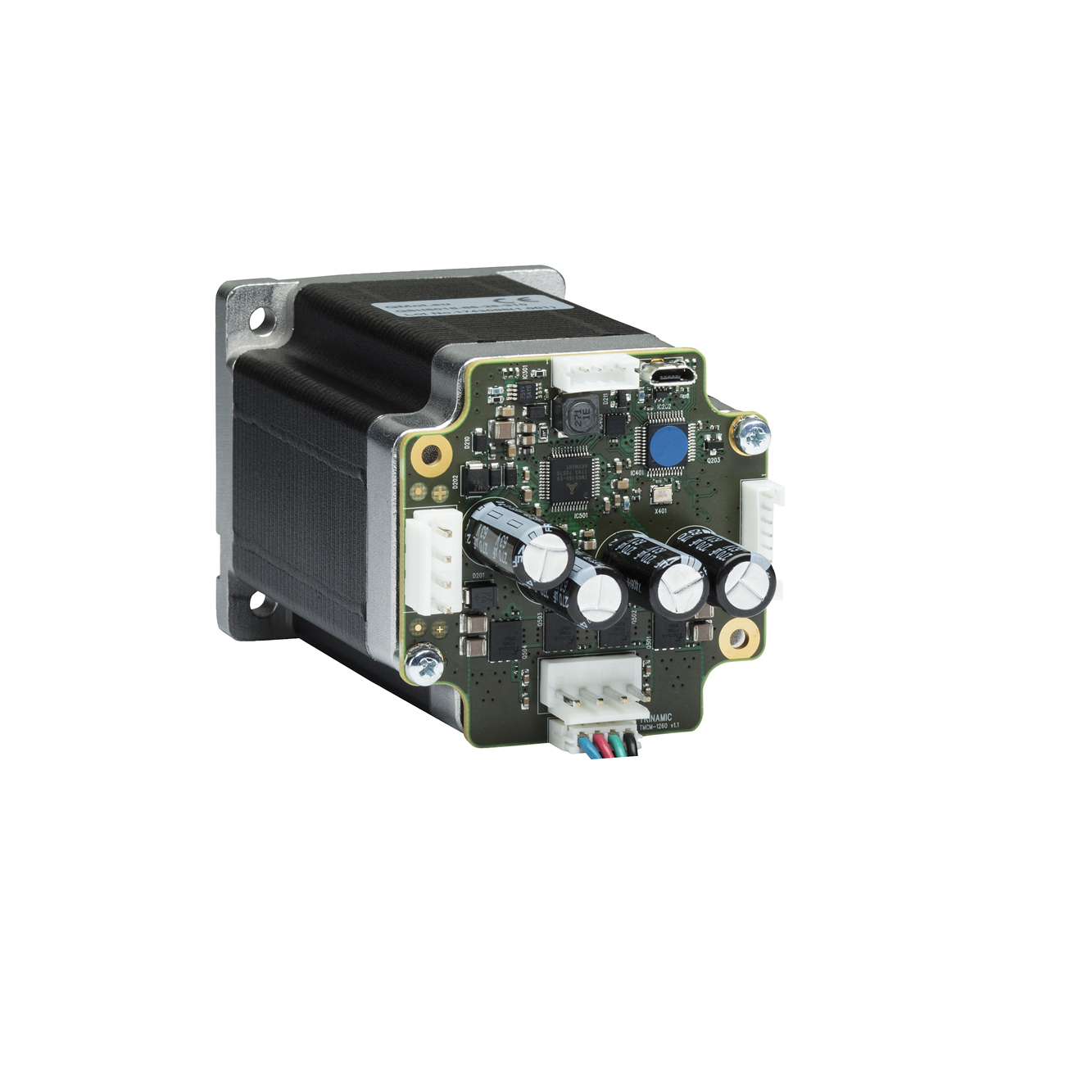

NEMA 23 smart stepper motor 12 to 52V, 55Ncm, 256 µSteps, SixPoint ramp controller with USB, S/D RS485 and CAN interface, SensOstep, StallGuard2 and CoolStep, StealthChop

Analog Devices PD-1260 Product Info

10 February 2026 4

Features

Stepper Motor NEMA23 / 57mm or NEMA24 / 60mm or NEMA34 / 86mm
0.55 - 7.0Nm
With controller / driver
Linear and sixPoint^™ ramps
+24V and +48V DC supply voltage

Up to 5.5A RMS motor current
RS485, CAN & USB interface
Integrated SensOstep^™ encoder and support for external encoder
S/D interface
Multi-purpose inputs and outputs

Part details & applications

The PD57/60/86-1260 is a powerful and compact full mechatronic solution, made up of a TMCM-1260 stepper control module and a NEMA 23, NEMA 24 or NEMA 34 (57mm, 60mm or 86mm flange size) motor. Dynamic current control and quiet, smooth and efficient operation are combined with StealthChop^™, DcStep^™, StallGuard^™ and CoolStep^™ features.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

APPLICATIONS

Laboratory Automation
Manufacturing
Semiconductor Handling
Robotics
Factory Automation
Test & Measurement
Life Science
Biotechnology
Liquid Handling
