MX7847

PRODUCTION

Complete, Dual, 12-Bit Multiplying DAC with 8-Bit Bus Interface Dual, Parallel, Voltage-Output DACs in a SO Package

Analog Devices MX7847 Product Info

10 February 2026 3

Features

Two 12-Bit Multiplying DACs with Buffered Voltage Output
Specified with ±12V or ±15V Supplies
No External Adjustments Required
Fast Timing Specifications
24-Pin DIP and SO Packages
12-Bit Parallel Interface (MX7847)
8-Bit + 4-Bit Interface (MX7837)

Part details & applications

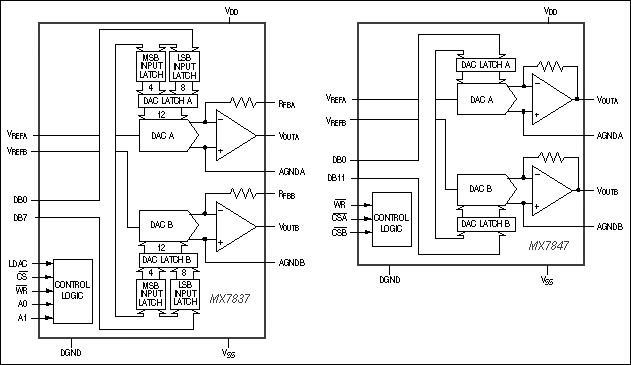

The MX7837/MX7847 are dual, 12-bit, multiplying, voltage-output digital-to-analog converters (DACs). Each DAC has an output amplifier and a feedback resistor. The output amplifier is capable of developing ±10V across a 2kΩ load. The amplifier feedback resistor is internally connected to VOUT on the MX7847. No external trims are required to achieve full 12-bit performance over the entire operating temperature range.

The MX7847 has a 12-bit parallel data input, whereas the MX7837 operates with a double-buffered 8-bit-bus interface that loads data in two write operations. All logic signals are level triggered and are TTL and CMOS compatible. Fast timing specifications make these DACs compatible with most microprocessors.

Applications

Digital Gain and Offset Control
Industrial Process Controls
Machine- and Motion-Control Systems
