MAX3186

PRODUCTION

±15kV ESD-Protected, EMC Compliant, 230kbps RS-232 Serial Port for Modems

Analog Devices MAX3186 Product Info

10 February 2026 4

Features

Enhanced ESD Protection:
- ±15kV—Human Body Model
- ±8kV—IEC 1000-4-2, Contact Discharge
- ±15kV—IEC 1000-4-2, Air-Gap Discharge
Latchup Free During an ESD Event
20-Pin SSOP or SO Packages
Guaranteed 230kbps Data Rate
Flow-Through Pinout
Complete DCE Serial Port

Part details & applications

The MAX3186 is a complete DCE RS-232 serial port designed to meet the stringent ESD requirements of the European community. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.

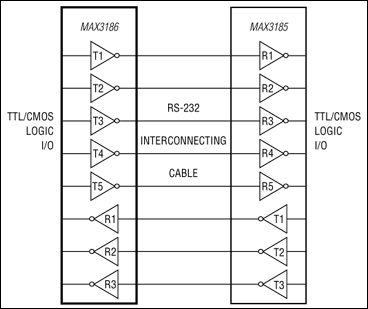

The MAX3186 has five RS-232 transmitters, three RS-232 receivers, and no charge pump, optimizing it for operation in modem applications. It is guaranteed to run at data rates up to 230kbps, providing compatibility with popular software for communicating with personal computers. Power-supply current is less than 300µA for I_DD and I_SS, and less than 1mA for I_CC.

The MAX3186 is available in an SO package and in the tiny SSOP that further reduces board space.

Applications

Equipment Meeting IEC 1000-4-2
Instruments
ISDN Modems
Modems
