Analog Devices MAXM15063 Product Info

• Easy to use
  • Wide 4.5V to 60V Input Range
  • Adjustable 0.9V to 5V Output
  • Fixed 3.3V and 5V Output (MAXM15062 and MAXM15063)
  • ±1.5% Feedback Accuracy
  • Up to 300mA Output-Current
  • Internally Compensated
  • All Ceramic Capacitors
• High Efficiency
  • Selectable PWM- or PFM-Mode of Operation
  • Shutdown Current as Low as 2.2µA (typ)
• Flexible Design
  • Internal Soft-Start and Prebias Startup
  • Open-Drain Power Good Output (Active-low RESET Pin)
  • Programmable EN/UVLO Threshold
• Robust Operation
  • Hiccup Overcurrent Protection
  • Overtemperature Protection
  • -40°C to +125°C Ambient Operating Temperature/-40°C to +150°C Junction Temperature
• Rugged
  • Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions
  • Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111

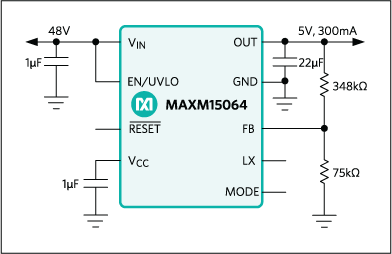

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power-supply solutions. The MAXM15062/MAXM15063/MAXM15064 are a family of high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components, and inductor that operate over a wide input-voltage range. The modules operate from 4.5V to 60V input and deliver up to 300mA output current. The MAXM15062 and MAXM15063 are fixed 3.3V and 5V output modules respectively. The MAXM15064 is an adjustable output (0.9V to 5V) module. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug and play power/ supply solution, reducing time-to-market.

The MAXM15062/3/4 modules employ peak-currentmode control architecture. To reduce input inrush current, the modules offer a fixed 4.1ms soft-start time.

The MAXM15062/3/4 module is available in a low profile, compact 10-pin, 2.6mm × 3mm × 1.5mm, uSLIC™ package.

Applications

• 4-20mA Current-Loop Powered Sensors
• Battery-Powered Equipment
• General Purpose Point-of-Load
• HVAC and Building Control
• Industrial Sensors and Process Control
• LDO Replacement
• USB Type-C Powered Loads
