Analog Devices MAX9213 Product Info

• Programmable DC-Balanced or Non-DC-Balanced Operation
• DC Balance Allows AC-Coupling for Ground-Shift Tolerance
• As Low as 8MHz Operation
• Pin Compatible with DS90CR215 and DS90CR217 in Non-DC-Balanced Mode
• Integrated 110Ω (DC-Balanced) and 410Ω (Non-DC-Balanced) Output Resistors
• 5V Tolerant LVTTL/LVCMOS Data Inputs
• PLL Requires No External Components
• Up to 1.785Gbps Throughput
• LVDS Outputs Meet IEC 61000-4-2 and ISO 10605 Requirements
• LVDS Outputs Conform to ANSI TIA/EIA-644 LVDS Standard
• Low-Profile 48-Lead TSSOP and Space-Saving TQFN Packages
• -40°C to +85°C Operating Temperature Range
• +3.3V Supply

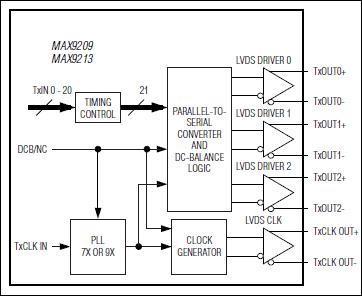

The MAX9209/MAX9213 serialize 21 bits of LVTTL/LVCMOS parallel input data to three LVDS outputs. A parallel rate clock on a fourth LVDS output provides timing for deserialization.

The MAX9209/MAX9213 feature programmable DC balance, which allows isolation between the serializer and deserializer using AC-coupling. The DC balance circuits on each channel code the data, limiting the imbalance of transmitted ones and zeros to a defined range. The companion MAX9210/MAX9214 deserializers decode the data. When DC balance is not programmed, the serializers are compatible with non-DC-balanced, 21-bit serializers such as the DS90CR215 and DS90CR217.

Two frequency ranges and two DC-balance default conditions are available for maximum replacement flexibility and compatibility with existing non-DC-balanced serializers.

The MAX9209/MAX9213 are available in TSSOP and space-saving thin QFN packages.

Applications

• Automotive DVD Entertainment Systems
• Automotive Navigation Systems
• Digital Copiers
• Laser Printers
