Analog Devices MAX17541G Product Info

• Reduces External Components and Total Cost
  • No Schottky-Synchronous Operation
  • All-Ceramic Capacitors, Ultra-Compact Layout
• Reduces Number of DC-DC Regulators to Stock
  • Wide 4.5V to 42V Input
  • Adjustable 0.9V to 92%V_IN Output
  • Delivers up to 500mA
• Reduces Power Dissipation
  • Peak Efficiency > 90%
  • Shutdown Current = 0.9µA (typ)
• Operates Reliably in Adverse Industrial Environments
  • Hiccup-Mode Current Limit, Sink Current Limit, and Autoretry Startup
  • Built-In Output-Voltage Monitoring (Active-Low RESET Pin)
  • Programmable EN/UVLO Threshold
  • Adjustable Soft-Start and Prebiased Power-Up
  • High Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range

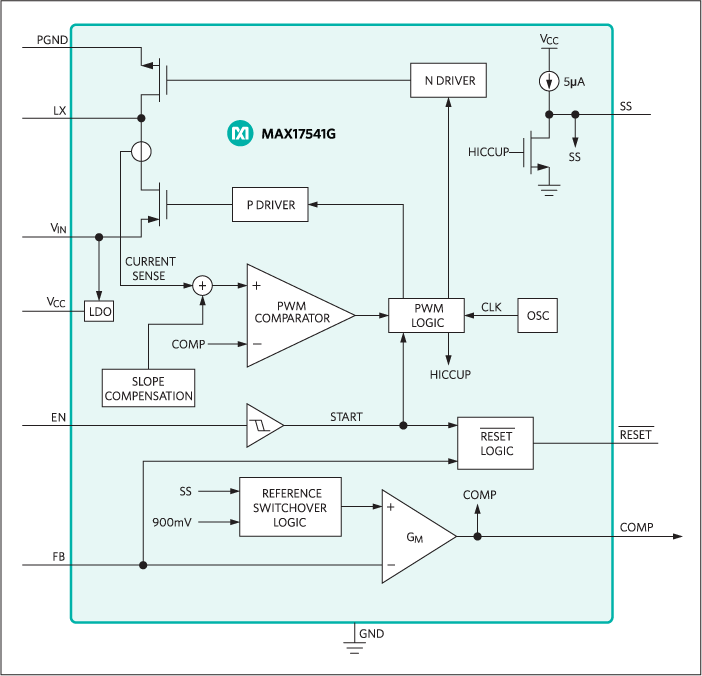

The MAX17541G high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs operates over 4.5V to 42V input. The converter can deliver up to 500mA and generates output voltages from 0.9V up to 0.92 x V_IN. The feedback (FB) voltage is accurate to within ±1.7% over -40°C to +125°C.

The MAX17541G uses peak-current-mode control with pulse-width modulation (PWM) and operates with fixed 600kHz switching frequency at any load. The device is available in a 10-pin (3mm × 2mm) TDFN package. Simulation models are available.

Applications

• Base Station, VOIP, Telecom
• Battery-Powered Equipment
• General-Purpose Point of Load
• Home Theatre
• HVAC and Building Control
• Industrial Process Control
