MAX8713

PRODUCTION

Simplified Multichemistry SMBus Battery Charger Multichemistry, SMBus, Battery Charger Simplifies Construction of Smart Chargers with a Minimum Number of External Components

Analog Devices MAX8713 Product Info

10 February 2026 5

Features

Over 2A Charge Current

Intel SMBus 2-Wire Serial Interface

±0.6% Charge Voltage Accuracy

11-Bit Charge Voltage Resolution

6-Bit Charge Current Resolution

Adjustable Switching Frequency

+8V to +28V Input Voltage Range

Cycle-By-Cycle Current Limit

Charges Any Battery Chemistry (Li+, NiCd, NiMH, Lead Acid, etc.)

Small, 24-Pin TQFN

Part details & applications

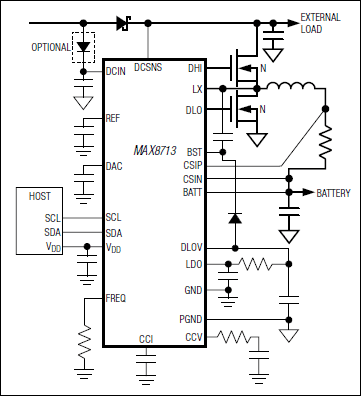

The MAX8713 multichemistry battery charger simplifies construction of smart chargers with a minimum number of external components. It uses the Intel System Management Bus (SMBus) to control the charge voltage and charge current. High efficiency is achieved through the use of a constant off-time step-down topology with synchronous rectification.

The MAX8713 charges one to four lithium-ion (Li+) cells in series and delivers over 2A charge currentscalable with the sense resistor. The MAX8713 drives n-channel MOSFETs for improved efficiency and reduced cost. A low-offset charge-current-sense amplifier provides high accuracy charge current with small sense resistors.

The MAX8713 is available in a space-saving 24-pin, 4mm x 4mm TQFN package and operates over the extended (-40°C to +85°C) temperature range. An evaluation kit is available to reduce design time.

Applications

Digital Cameras
Handset Car Kits
Notebook Computers
PDAs and Tablet Computers
Portable Equipment with Rechargeable Batteries
