Analog Devices MX7528 Product Info

• Data Latches For Both DACs
• MX7528—+5V to +15V Single Supply Operation
• MX7628—+12V to +15V Single Supply Operation with TTL/CMOS Compatible Inputs
• ±½ LSB Linearity
• Microprocessor Compatible
• Four-Quadrant Multiplication
• DAC Matched to 1%

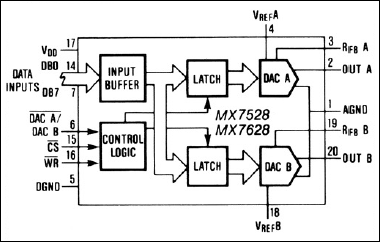

The MX7528/MX7628 contains two 8-bit multiplying digital-to-analog converters (DACs). Separate on-chip latches hold the input data for each DAC to allow easy interface to microprocessors. The data load operation is similar to a static RAM write cycle. Data is loaded using only active-low CS, active-low WR, and DAC Select (active-low DAC A /DAC B) inputs.

Each DAC has a separate reference input and internal feedback resistor which allow fully independent operation while maintaining excellent DAC-to-DAC matching. The MX7528 operates from a single +5 to +15V power supply whereas the MX7628 operates from +12V to +15V. The MX7528 has TTL compatible inputs at +5V supply only and the MX7628 has TTL compatible inputs from +12V to +15V supplies. The MX7528/MX7628 is supplied in 20-lead narrow DIP and Small Outline Packages.

Applications

• Digital-to-Synchro Conversion
• Digitally Controlled Filters
• Disk Drives
• Motion Control Systems
• Programmable Attenuators
• X-Y Graphic
