Analog Devices MAX8654 Product Info

• Internal 26mΩ R_DS(ON) MOSFETs
• Guaranteed 8A Output Current
• Adjustable Overcurrent Protection
• 1% Output Accuracy Over Temperature
• Operates from 4.5V to 14V Supply
• Adjustable Output from 0.6V to 0.85 x V_IN
• Soft-Start Reduces Inrush Supply Current
• 250kHz to 1.2MHz Adjustable Switching or SYNC Input
• Compatible with Ceramic, Polymer, and Electrolytic Output Capacitors
• SYNCOUT Synchronizes 2nd Regulator 180° Out-of-Phase
• 36-Pin, Lead-Free, 6mm x 6mm TQFN Package

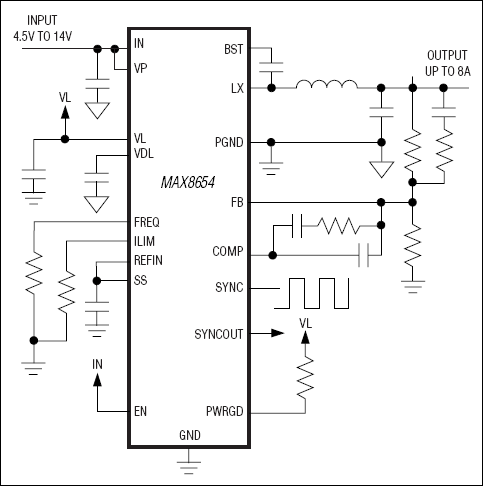

The MAX8654 high-efficiency switching regulator delivers up to 8A of load current at output voltages from 0.6V to 0.85 x V_IN. The IC operates from 4.5V to 14V, making it ideal for on-board point-of-load and postregulation applications, with total output error less than ±1% over load, line, and temperature ranges.

The MAX8654 is a fixed-frequency PWM mode regulator with a switching frequency range of 250kHz to 1.2MHz set by an external resistor or SYNC input. High-frequency operation allows for an all-ceramic-capacitor solution. A SYNCOUT output is provided to synchronize a second regulator switching 180° out-of-phase with the first to reduce the input ripple current and consequently reduce the required input capacitance. The high operating frequency minimizes the size of external components.

The on-board low R_DS(ON) dual-nMOS design keeps the board cooler at heavy loads while minimizing the critical inductances, making the layout a much simpler task with respect to the discrete solutions.

The MAX8654 comes with a high-bandwidth (20MHz) voltage-error amplifier. The voltage-mode control architecture and the op-amp voltage-error amplifier permit a type 3 compensation scheme to be utilized to achieve maximum loop bandwidth, up to 20% of the switching frequency. High loop bandwidth achieves fast transient response resulting in less output capacitance required.

The MAX8654 offers programmable soft-start to accommodate different types of output capacitors and reduce input inrush current. The MAX8654 is available in a 36-lead TQFN package.

Applications

• DDR Memory
• Graphic Cards
• Network-Power Supplies
• POL Power Supplies
• RAID Power Supplies
• Servers
