MAX77675

RECOMMENDED FOR NEW DESIGNS

Low IQ SIMO PMIC with 0.5V to 5.5V Outputs Delivering Up to 700mA Total Output Current Low IQ SIMO PMIC with 0.5V to 5.5V Outputs Delivering up to 700mA Total Output Current

Analog Devices MAX77675 Product Info

10 February 2026 3

Features

4x Buck/Buck-Boost/Boost Regulators, 1x Inductor
2.5V to 5.5V Input Voltage Range
0.5V to 5.5V Output Voltage Range
700mA Total Output Current (3.7V_IN, 1.8V_OUT)
SIMO
Up to 90% Efficiency
- 6.9μA Typical I_Q with Two Outputs Enabled in Low-Power Mode

I²C Interface and Dedicated Enable Pin
Flexible Power Sequencer (FPS)

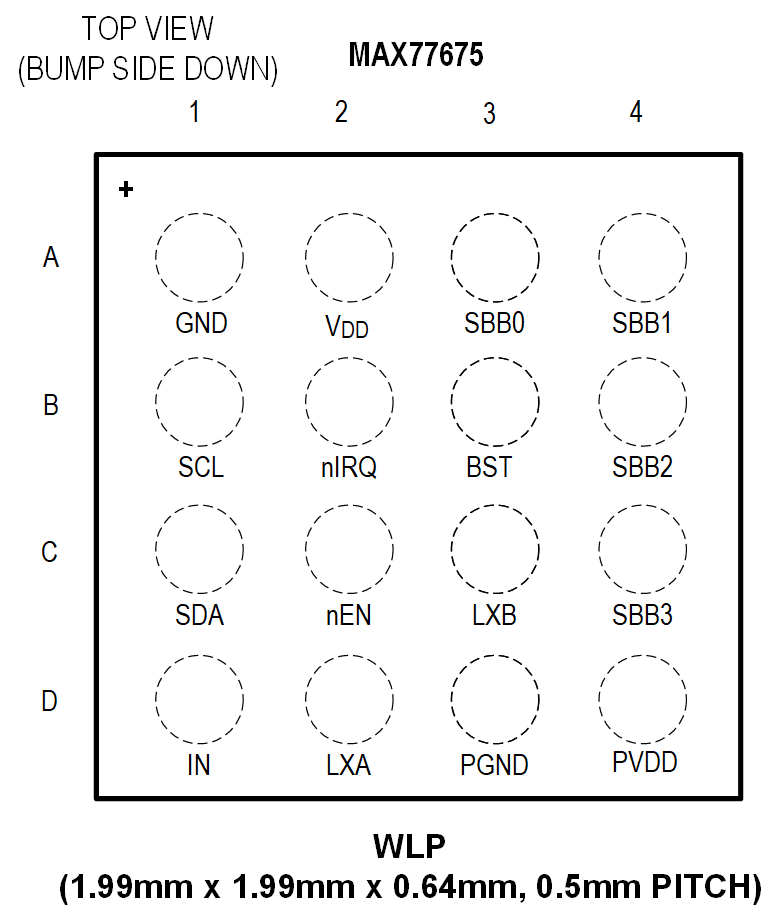

1.99mm x 1.99mm, 16-Bump, 0.5mm Pitch Wafer-Level Package (WLP)
- < 40mm2 Solution Size

Part details & applications

The MAX77675 is a highly efficient, complete power supply for low-power, ultra-compact applications. It provides four programmable buck-boost switching outputs using only one inductor. Operating from a single lithium-ion or Li-ion battery, the MAX77675 delivers a total of 700mA output current (3.7V_IN, 1.8V_OUT) in less than 40mm² solution size.

An integrated sequencer controls full startup while an I²C interface allows the MAX77675 to be dynamically configured and monitored.

This device is part of the single-inductor multiple-output (SIMO) product family.

Applications

TWS Bluetooth™ Headphones/Hearables
Fitness, Health, Activity Monitors, and Smart Watches
Portable Devices
Sensor Nodes and Consumer Internet of Things or IoT
