Analog Devices MAX17575 Product Info

• Reduces External Components and Total Cost
  • No Schottky-Synchronous Operation
  • Internal Compensation for Any Output Voltage
  • All-Ceramic Capacitors, Compact Layout
• Reduces Number of DC-DC Regulators to Stock
  • Wide 4.5V to 60V Input
  • Adjustable 0.9V to 0.9 × V_IN Output
  • Continuous 1.5A Current Over Temperature
  • 400kHz to 2.2MHz Adjustable Switching Frequency with External Synchronization
• Reduces Power Dissipation
  • Peak Efficiency of 94%
  • Auxiliary Bootstrap LDO for Improved Efficiency
  • 4.65μA Shutdown Current
• Operates Reliably in Adverse Industrial Environments
  • Hiccup Mode Overload Protection
  • Adjustable Soft-Start
  • Built-In Output-Voltage Monitoring with RESET
  • Programmable EN/UVLO Threshold
  • Monotonic Startup into Prebiased Load
  • Overtemperature Protection
  • High Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range

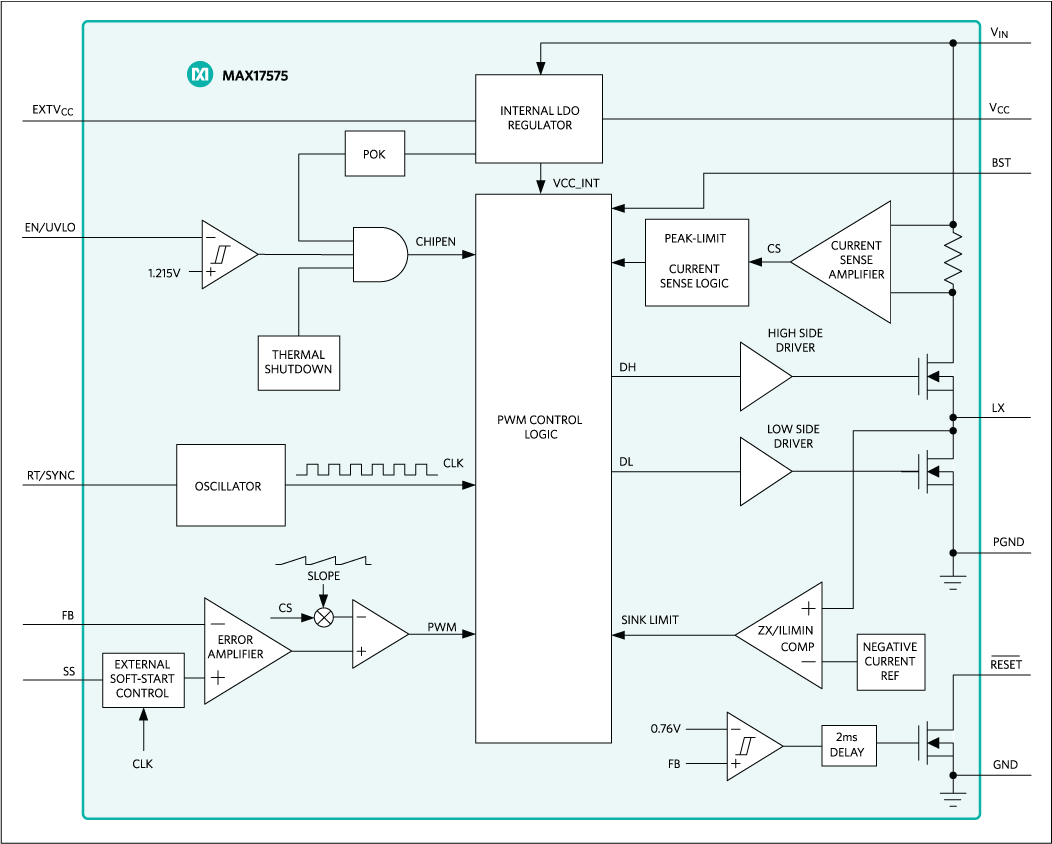

The MAX17575 high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs operates over a 4.5V to 60V input. The converter can deliver up to 1.5A and generates output voltages from 0.9V up to 0.9 x V_IN. The feedback (FB) voltage is accurate to within ±1.2% over -40°C to +125°C. Built-in compensation across the output-voltage range eliminates the need for external components. The MAX17575 features peak-current-mode control architecture and operates in fixed frequency forced PWM mode. The MAX17575 offers a low minimum on-time that allows high switching frequencies and a smaller solution size.

The device is available in a 12-pin (3mm × 3mm) TDFN package. Simulation models are available.

Applications

• Base Station Power Supplies
• Distributed Supply Regulation
• General-Purpose Point-of-Load
• High-Voltage, Single-Board Systems
• Industrial Control Power Supplies
• Wall Transformer Regulation
