MAX77542

RECOMMENDED FOR NEW DESIGNS

16VIN/16A, Quad-Phase High-Efficiency Buck Converter

Analog Devices MAX77542 Product Info

10 February 2026 8

Features

2.8V to 16V Input-Voltage Range
0.3V to 5.2V Output-Voltage Range
Max 16A (4A/Φ) with Five Phase Configurations
±0.5% V_OUT Accuracy (Default V_OUT at +25°C)
94% Peak Efficiency (7.6V_IN, 3.3V_OUT, 1MHz)
Auto Skip/PWM Transition and Low-Power Mode
Drop-Out Operation with 98% of Max Duty Cycle
Differential Output-Voltage Sensing
Flexible Sequencer with Soft-Start/Soft-Stop Slew Rates
Prebiased Startup and Active Output Discharge
0.5MHz/1.0MHz/1.5MHz Nominal Switching Frequency

Spread-Spectrum Modulation for EMI Reduction
Internal/External Frequency Tracking
Default V_OUT and Phase Configuration Setting by R_SELx
Multifunction I/Os for EN, LPM, FPWM, and POK
UVLO, Thermal-Shutdown, and Short-Circuit Protection
High-Speed, I²C Serial Interface
Available in 60-Bump WLP (4.36mm x 2.56mm x 0.65mm)

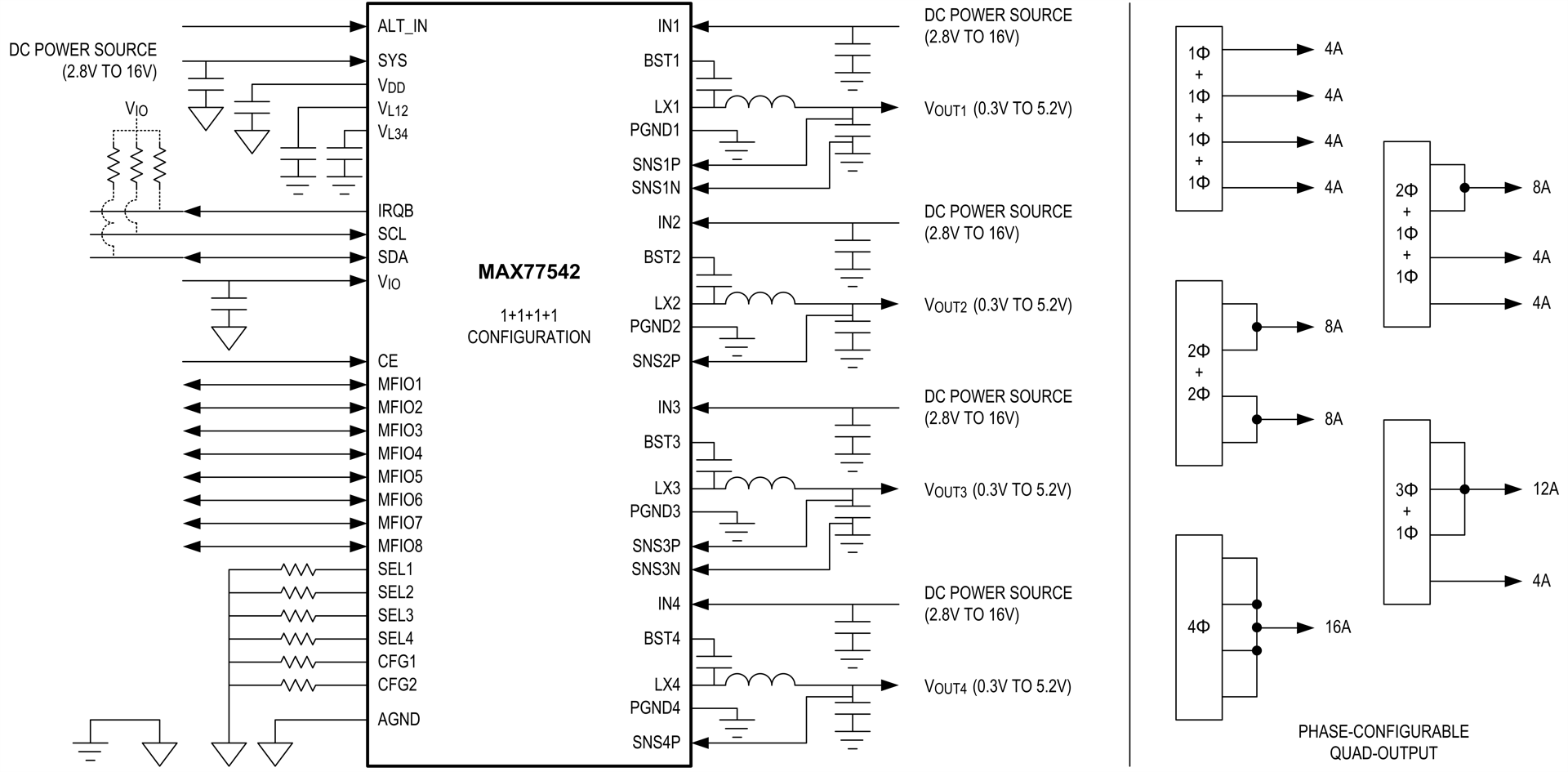

Less than 115mm² Total Solution Size with 2520 Inductors

Part details & applications

The MAX77542 is a high-efficiency step-down converter with four 4A switching phases. It uses an adaptive constant on-time (COT) current-mode control scheme and its flexible architecture supports five phase configurations. Its wide input-voltage range enables a direct conversion for less than 1V outputs from 1 to 3-cell Li+ batteries and USB power delivery (PD) supply rails. The output voltages are preset with resistors and are further adjustable through an I²C-compatible interface.

Flexible sequencer and programmable soft-start/soft-stop slew rates provide controlled transitions between operating states. Programmable switching frequency, frequency tracking, and spread-spectrum features allow easier system optimization for noise-sensitive applications. Multifunction I/Os allow for flexible control of each output for EN, LPM, FPWM, POK, RSTINB, and RSTOB status. An array of built-in protections ensures safe operation under abnormal operating conditions.

APPLICATIONS

1 to 3-Cell Li+ and USB-C Power Delivery Systems
Audio/Video Equipment and PCIe/RAID Cards
Application Processors, FPGAs, DSPs, and ASICs
