Analog Devices MAX7326 Product Info

• 400kHz I²C Serial Interface
• +1.71V to +5.5V Operating Voltage
• 12 Push-Pull Output Ports, Rated at 20mA Sink Current
• Four Input Ports, Overvoltage Protected to +6V
• Transient Changes are Latched, Allowing Detection Between Read Operations
• Active-Low INT Output Alerts Changes on Inputs
• AD0 and AD2 Inputs Select from 16 Slave Addresses
• Low 0.6µA (typ) Standby Current
• -40°C to +125°C Temperature Range

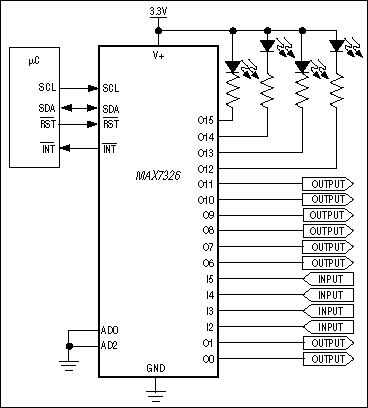

The MAX7326, a 2-wire serial-interfaced peripheral, features 12 push-pull outputs and four input ports with selectable internal pullups and transition detection. Ports are overvoltage protected to +6V, independent of supply voltage.

The inputs are continuously monitored for state changes (transition detection). State changes are indicated by the open-drain, +6V-tolerant active-low INT output. The interrupt is latched, detecting transient changes. When the MAX7326 is subsequently accessed through the serial interface, any pending interrupt is cleared. The 12 push-pull outputs are rated to sink 20mA and are capable of driving LEDs. The active-low RST input clears the serial interface, terminating any I²C communication to or from the MAX7326.

The MAX7326 uses two address inputs with four-level logic to allow 16 I²C slave addresses. The slave address also enables or disables internal 40kΩ pullups in groups of two ports.

The MAX7326 is one device in a family of pin-compatible port expanders with a choice of input ports, open-drain I/O ports, and push-pull output ports.

The MAX7326 is available in 24-pin QSOP and TQFN packages, and it is specified over the -40°C to +125°C automotive temperature range.

Applications

• Cell Phones
• Notebooks
• SAN/NAS
• Satellite Radio
• Servers
