Analog Devices ADT7411 Product Info

• 10-bit temperature-to-digital converter
• 10-bit 8-channel ADC
  • DC input bandwidth
  • Input range: 0 V to 2.25 V and 0 V to V_DD
• Temperature range: −40°C to +120°C
• Temperature sensor accuracy of ±0.5°C
• Supply range: 2.7 V to 5.5 V
• Power-down current : <10 μA
• Internal 2.25 V_REF option
• Double-buffered input logic
• I²C, SPI, QSPI™, MICROWIRE™, and DSP compatible
• 4-wire serial interface
• SMBus packet error checking (PEC) compatible

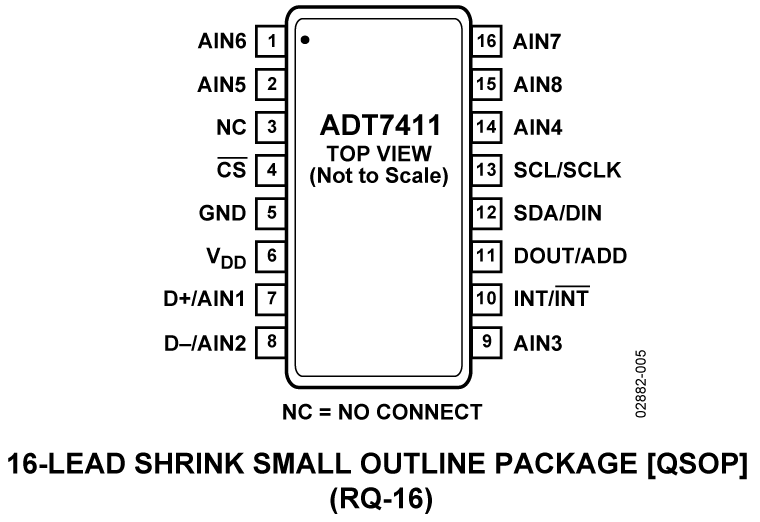

• 16-lead QSOP

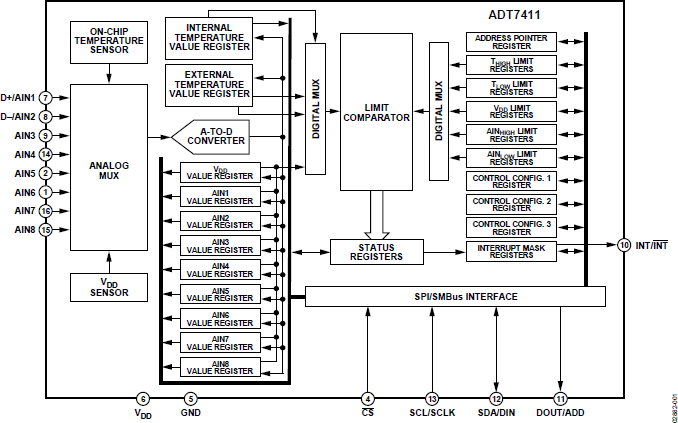

The ADT7411 combines a 10-bit temperature-to-digital converter and a 10-bit 8-channel ADC in a 16-lead QSOP. This includes a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The ADT7411 operates from a single 2.7 V to 5.5 V supply. The input voltage on the ADC channels has a range of 0 V to 2.25 V and the input bandwidth is dc. The reference for the ADC channels is derived internally. The ADT7411 provides two serial interface options: a 4-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, and a 2-wire SMBus/I²C interface. It features a standby mode that is controlled via the serial interface.

The ADT7411’s wide supply voltage range, low supply current, and SPI-/I²C-compatible interface make it ideal for a variety of applications, including PCs, office equipment, and domestic appliances.

Applications

• Portable battery-powered instruments
• PCs
• Smart battery chargers
• Telecommunications systems electronic test equipment
• Domestic appliances
• Process controls
