LTC6993-1

PRODUCTION

TimerBlox: Monostable Pulse Generator (One Shot)

Analog Devices LTC6993-1 Product Info

10 February 2026 6

Features

Pulse Width Range: 1µs to 33.6 Seconds
Configured with 1 to 3 Resistors
Pulse Width Max Error:
- <2.3% for Pulse Width > 512µs
- <3.4% for Pulse Width of 8µs to 512µs
- <4.9% for Pulse Width of 1µs to 8µs
Four LTC6993 Options Available:
- Rising-Edge or Falling-Edge Trigger
- Retriggerable or Non-Retriggerable
Configurable for Positive or Negative Output Pulse

Fast Recovery Time
2.25V to 5.5V Single Supply Operation
70µA Supply Current at 10µs Pulse Width
500µs Start-Up Time
CMOS Output Driver Sources/Sinks 20mA
–55°C to 125°C Operating Temperature Range
Available in Low Profile (1mm) SOT-23 (ThinSOT^™) and 2mm × 3mm DFN
AEC-Q100 Qualified for Automotive Applications

Part details & applications

The LTC6993 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1µs to 33.6 seconds. The LTC6993 is part of the TimerBlox^® family of versatile silicon timing devices.

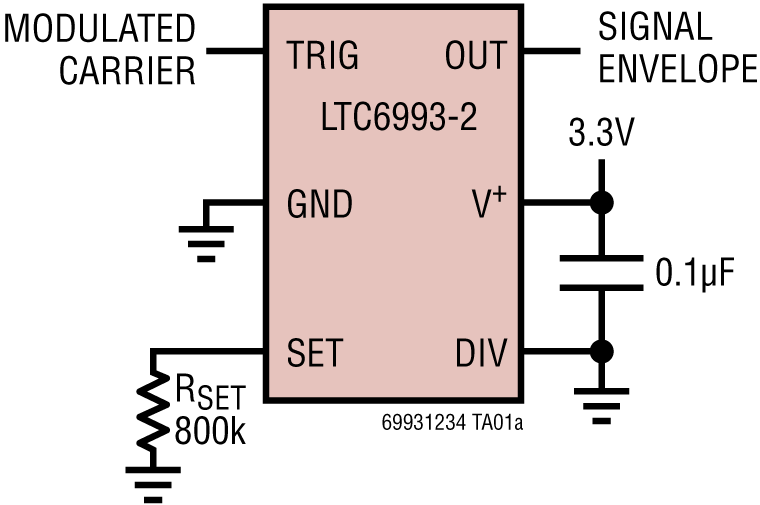

A single resistor, R_SET, programs an internal master oscillator frequency, setting the LTC6993’s time base. The output pulse width is determined by this master oscillator and an internal clock divider, N_DIV, programmable to eight settings from 1 to 2²¹.

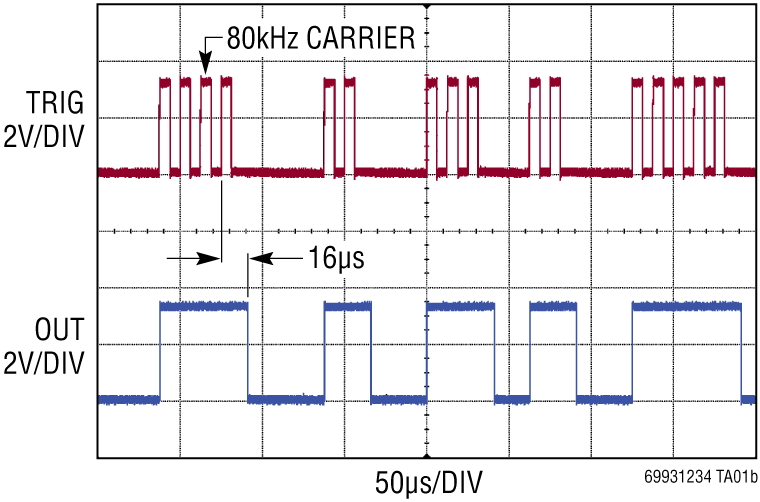

The output pulse is initiated by a transition on the trigger input (TRIG). Each part can be configured to generate positive or negative output pulses. The LTC6993 is available in four versions to provide different trigger signal polarity and retrigger capability.

The LTC6993 also offers the ability to dynamically adjust the width of the output pulse via a separate control voltage.
