Analog Devices MAX7037 Product Info

• Ultra-Low-Power Consumption for Battery-Based Operation
  • Current Consumption TX (POUT = +6dBm, FSK): 16mA
  • Current Consumption RX (FSK): 22mA
  • Current Consumption Deep Sleep Mode (Watchdog Timer and PRAM Active): 100nA
  • Supply Voltage Range: 2.1V to 5.5V
  • Integrated Ultra-Low-Power On/Off Voltage Threshold Detectors
• Worldwide Usable Frequency Band Coverage
  • ISM Band Frequency Coverage: 315/433/868/915~930MHz
• Fractional-N LO Generation For Multichannel Operation
  • RF Synthesizer Resolution: 244Hz/488Hz
• FFSK/FMSK/ASK Modulation for Optimum Compatibility with Various Communication Standards
  • Gross Data Rates: Up To 125Kbit/s
  • ASK with Programmable Transition Shape for Spectral Tuning
• Fully Integrated RF, TX, and RX Front-End for Minimum External Components
  • Maximum TX Output Power (R_LOAD = 400Ω): +10dBm
  • RX Sensitivity (FFSK, BW = 150kHz): -100dBm
• Mixed-Signal Sensor Interface with Analog I/O Through ADC/DAC and On-Chip Buffers (Contact Factory for Future Support)
  • Integrated 9-Bit Sigma Delta ADC for Applications
  • Integrated 8-Bit DAC
  • 8 Mixed-Signal I/Os with Versatile Switching Matrix; Up to 18 Digital I/Os
• Wristwatch Crystal-Based Real-Time Clock (Contact Factory for Future Support)
  • Wristwatch Crystal Oscillator Integrated: 32768Hz

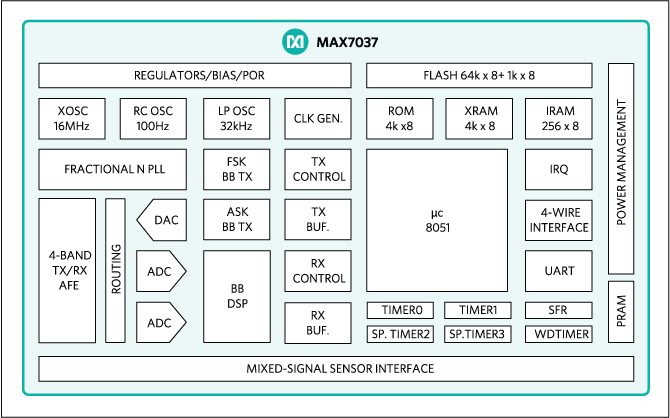

The MAX7037 is an ultra-low-power high-performance quad band multichannel transceiver with integrated 8051 microcontroller, flash memory, and sensor interface. The MAX7037 runs from a minimum supply voltage of only 2.1V, extending battery life and also enabling it to cope with different sources of energy like solar cells, electromechanical, or thermo electrical energy. Hardware-implemented transmit-and-receive routines in combination with a microcontroller enable a high-efficiency transceiver system for wireless fail-safe multiband/multichannel communication with advanced FSK and ASK protocol features. Sleep modes allow easy implementation of low-power applications with fast reaction times.

Applications

• Automotive remote keyless entry and tire pressure monitor
• Building automation / smart home
• Smart meter
• Ultra-low-power sensor networks
