Analog Devices MAX19191 Product Info

• Ultra-Low Power
  • 15.3mW (Normal Operation: 10Msps)
  • 2µW (Shutdown Mode)
• Excellent Dynamic Performance
  • 48.6dB SNR at f_IN = 1.875MHz
  • 70dBc SFDR at f_IN = 1.875MHz
• 2.7V to 3.6V Single Analog Supply
• 1.8V to 3.6V TTL/CMOS-Compatible Digital Outputs
• Fully Differential or Single-Ended Analog Inputs
• Internal/External Reference Option
• Multiplexed CMOS-Compatible Three-State Outputs
• 28-Pin Thin QFN Package
• Evaluation Kit Available (Order MAX19191EVKIT+)

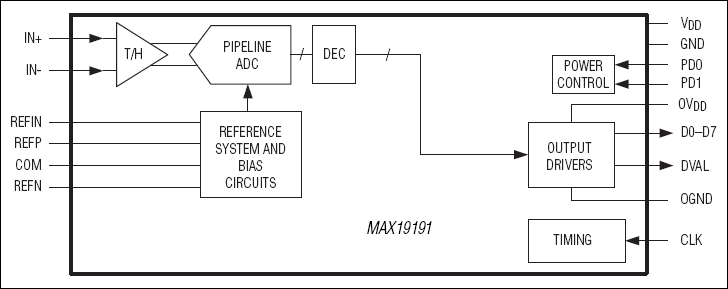

The MAX19191 is an ultra-low-power, 8-bit, 10Msps analog-to-digital converter (ADC). The device features a fully differential wideband track-and-hold (T/H) input. This input has a 440MHz bandwidth and accepts fully differential or single-ended signals. The MAX19191 delivers a typical signal-to-noise and distortion (SINAD) of 48.6dB at an input frequency of 1.875MHz and a sampling rate of 10Msps while consuming only 15.3mW. This ADC operates from a 2.7V to 3.6V analog power supply. A separate 1.8V to 3.6V supply powers the digital output driver. In addition to ultra-low operating power, the MAX19191 features three power-down modes to conserve power during idle periods. Excellent dynamic performance, ultra-low power, and small size make the MAX19191 ideal for applications in imaging, instrumentation, and digital communications.

An internal 1.024V precision bandgap reference sets the full-scale range of the ADC to ±0.512V. A flexible reference structure allows the MAX19191 to use its internal reference or accept an externally applied reference for applications requiring increased accuracy.

The MAX19191 features parallel, CMOS-compatible three-state outputs. The digital output format is offset binary. A separate digital power input accepts a voltage from 1.8V to 3.6V for flexible interfacing to different logic levels. The MAX19191 is available in a 5mm × 5mm, 28-pin thin QFN package, and is specified for the extended industrial (-40°C to +85°C) temperature range.

For higher sampling frequency applications, refer to the MAX1195–MAX1198 dual 8-bit ADCs. For a dual-channel, pin-compatible version, refer to the MAX19192 data sheet.

Applications

• Battery-Powered Portable Instruments
• Digital Audio Receiver Front-End
• Low-Power Video
• Ultrasound and Medical Imaging
• WLAN, Mobile DSL, WLL Receiver
