Analog Devices MAX7034 Product Info

• Optimized for 315MHz or 433.92MHz Band
• Operates from Single +3.3V/+5.0V Supply
• Selectable Image-Rejection Center Frequency
• Selectable x64 or x32 f_LO/f_XTAL Ratio
• Low (< 6.7mA) Operating Supply Current
• < 3.0µA Low-Current Power-Down Mode for Efficient Power Cycling
• 250µs Startup Time
• Built-In 44dB RF Image Rejection
• Excellent Receive Sensitivity Over Temperature
• -40°C to +125°C Operation
• -40°C to +105°C Operation (3.0V to 3.6V Supply)
• AEC-Q100 Qualified

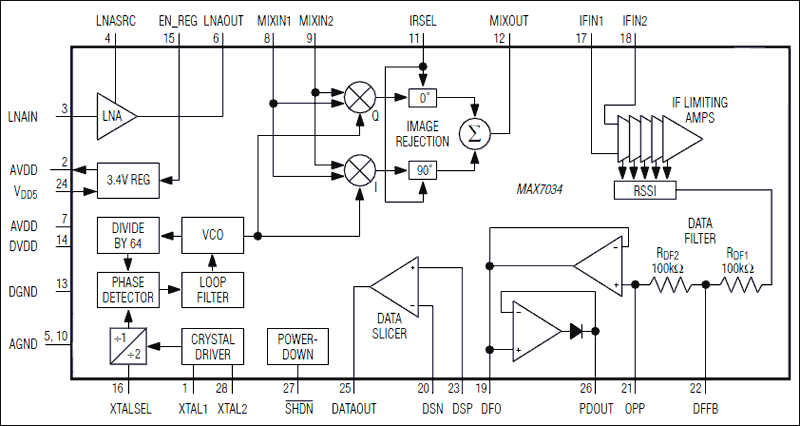

The MAX7034 fully integrated low-power CMOS super-heterodyne receiver is ideal for receiving amplitude-shift-keyed (ASK) data in the 300MHz to 450MHz frequency range (including the popular 315MHz and 433.92MHz frequencies). The receiver has an RF sensitivity of -114dBm. With few external components and a low-current power-down mode, it is ideal for cost-sensitive and power-sensitive applications typical in the automotive and consumer markets. The MAX7034 consists of a low-noise amplifier (LNA), a fully differential image-rejection mixer, an on-chip phase-locked loop (PLL) with integrated voltage-controlled oscillator (VCO), a 10.7MHz IF limiting amplifier stage with received-signal-strength indicator (RSSI), and analog baseband data-recovery circuitry.

The MAX7034 is available in a 28-pin (9.7mm x 4.4mm) TSSOP package and is specified over the automotive (-40°C to +125°C) temperature range.

Applications

• Automotive Remote Keyless Entry
• Garage Door Openers
• Home Automation
• Local Telemetry
• Remote Controls
• Security Systems
• Wireless Sensors
