Analog Devices MAX66300 Product Info

• Secure, Contactless Host Authenticator
  • ISO/IEC 15693 and 14443 Type A Standard Compliant
  • SHA-256 Engine to Run a Symmetric Key-Based Bidirectional Secure Authentication
  • Four 32-Byte Pages of User Memory
  • Four Master Secrets with Multiple Programmable Protection Options
  • 76-Byte Scratchpad in SRAM
  • True Hardware Random-Number Generator
  • Unique 64-Bit Serial Number
• Design Flexibility Supports Diverse Applications
  • UART and SPI Interface Ports
  • Power-Down Mode by an Input Pin (Low, Standby Power)
  • Antenna Short-Circuit Protection
  • Compatible with 3.3V or 5V Supply Voltages
  • ±2kV HBM ESD Protection
• Scalable 13.56MHz Analog Front-End Provides Support for Multiple Antenna Configurations
  • Single- or Double-Antenna Driver Using On-Off Keying (OOK) Modulation
  • User-Selectable ASK Uplink Modulations Index Adjustable from 7% Up to 30%
  • High Output RF Power of Up to 200mW
  • Multiple Receiver Inputs for High-Communication Reliability
  • Built-In Receiver Lowpass-Filter Cutoff Frequencies Selectable Between 400kHz and 1MHz
  • Built-In Receiver Highpass-Filter Cutoff Frequency Selectable Among 100kHz, 200kHz, and 300kHz
  • Selectable Receive Gain from 0dB up to 40dB
  • Multiple Subcarrier Receiving Compatibility (212kHz and 424kHz)
• Antenna Short-Circuit Protection Enhances System Ruggedness

DeepCover^® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

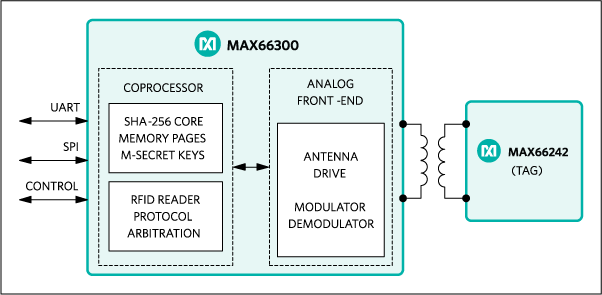

The DeepCover Secure Authenticator (MAX66300) combines a highly integrated RFID reader for contactless communication at 13.56MHz and a SHA-256 secure authenticator coprocessor. The RFID IC reader covers both the ISO 14443 Type A and the ISO 15693 standard. The authenticator coprocessor’s engine is based on the FIPS 180-4 standard and supports secure challenge-and-response authentication when paired with peripherals such as the Maxim MAX66240/ MAX66242 family of tag solutions. An embedded host processor can easily interface with the MAX66300 using its UART or SPI interface.

Applications

• Asset-Tracking Readers
• Authentication of Consumables
• Blood Glucose Meters/Monitors
• Handheld Reader Modules
• Readers in Printers (Ink Cartridge)
• Secure Access Control
