LTC2312-12

PRODUCTION

12-Bit, 500ksps Serial Sampling ADC in TSOT

Analog Devices LTC2312-12 Product Info

10 February 2026 5

Features

500ksps Throughput Rate
No Cycle Latency
Guaranteed 12-Bit No Missing Codes
Single 3V or 5V Supply
Low Noise: 73dB SNR
Low Power: 8mW at 500ksps and 3V Supply
Low Drift (20ppm/°C Maximum) 2.048V or 4.096V Internal Reference

Sleep Mode with < 1μA Typical Supply Current
Nap Mode with Quick Wake-Up < 1 Conversion
Separate 1.8V to 5V Digital I/O Supply
High Speed SPI-Compatible Serial I/O
Guaranteed Operation from –40°C to 125°C

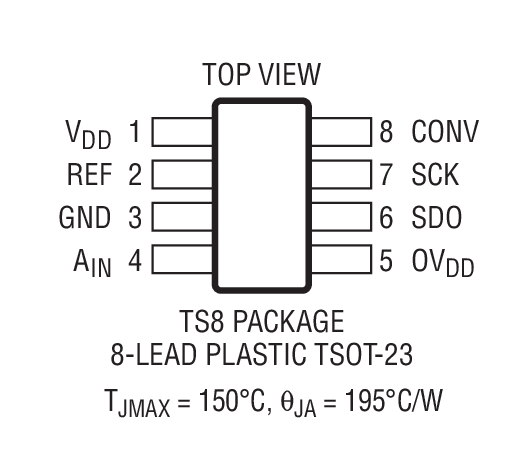

8-Lead TSOT-23 Package

Part details & applications

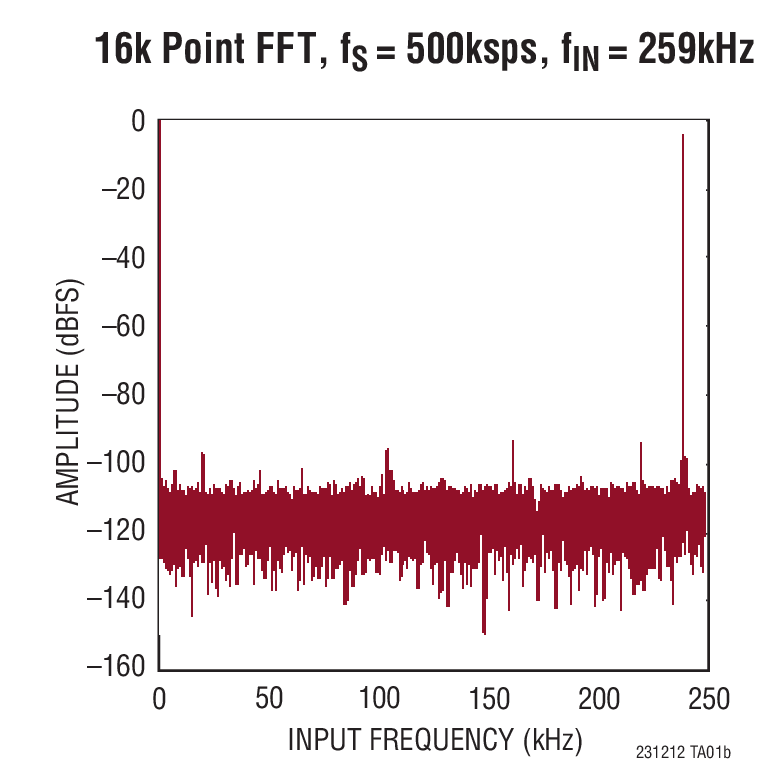

The LTC2312-12 is a 12-bit, 500ksps, serial sampling A/D converter that draws only 3mA from a single 3V or 5V supply. The LTC2312-12 contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space saving solution. The LTC2312-12 achieves outstanding AC performance of 72.7dB SINAD and –84dB THD while sampling at 500ksps. The extremely high sample rate-to-power ratio makes the LTC2312-12 ideal for compact, low power, high speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions.

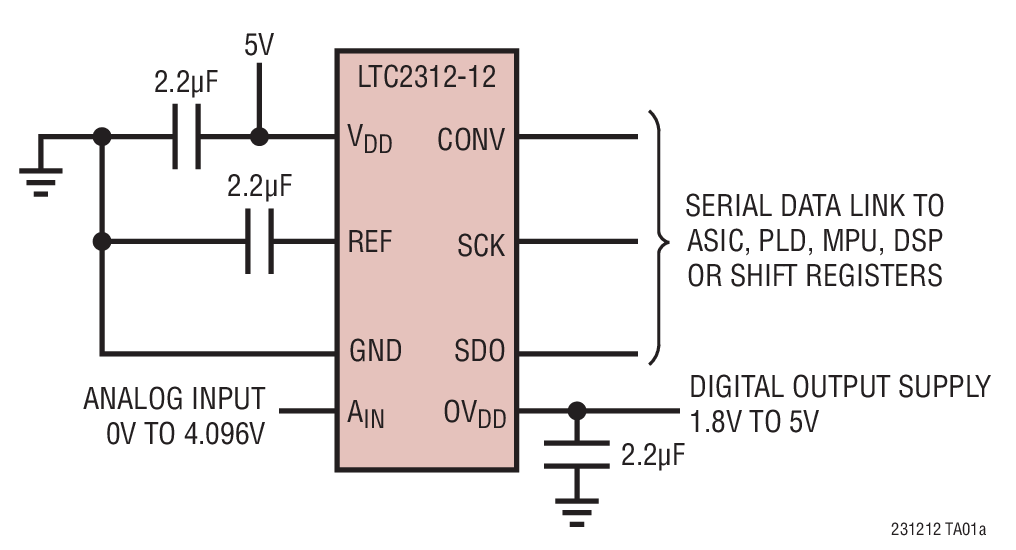

The LTC2312-12 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 500ksps throughput with no-cycle latency makes the LTC2312-12 ideally suited for a wide variety of high speed applications.


	Bits
LTC2312-12	12
LTC2312-14	14

Applications

Communication Systems
High Speed Data Acquisition
Handheld Terminal Interface
Medical Imaging
Uninterrupted Power Supplies
Battery Oper
