Analog Devices MAX5702 Product Info

• Two High-Accuracy DAC Channels
  • 12-Bit Accuracy Without Adjustment
  • ±1 LSB INL Buffered Voltage Output
  • Monotonic Over All Operating Conditions
  • Independent Mode Settings for Each DAC
• Three Precision Selectable Internal References
  • 2.048V, 2.500V, or 4.096V
• Internal Output Buffer
  • Rail-to-Rail Operation with External Reference
  • 4.5µs Settling Time
  • Outputs Directly Drive 2kΩ Loads
• Small 5mm x 3mm 10-Pin µMAX or Ultra-Small 3mm x 3mm 10-Pin TDFN Package
• Wide 2.7V to 5.5V Supply Range
• Separate 1.8V to 5.5V V_DDIO Power-Supply Input
• 50MHz 3-Wire SPI/QSPI/MICROWIRE/DSP-Compatible Serial Interface
• Power-On-Reset to Zero-Scale DAC Output
• Active-Low CLR For Asynchronous Control
• Three Software-Selectable Power-Down Output Impedances
  • 1kΩ, 100kΩ, or High Impedance
• Low 330µA Supply Current at 3V V_DD

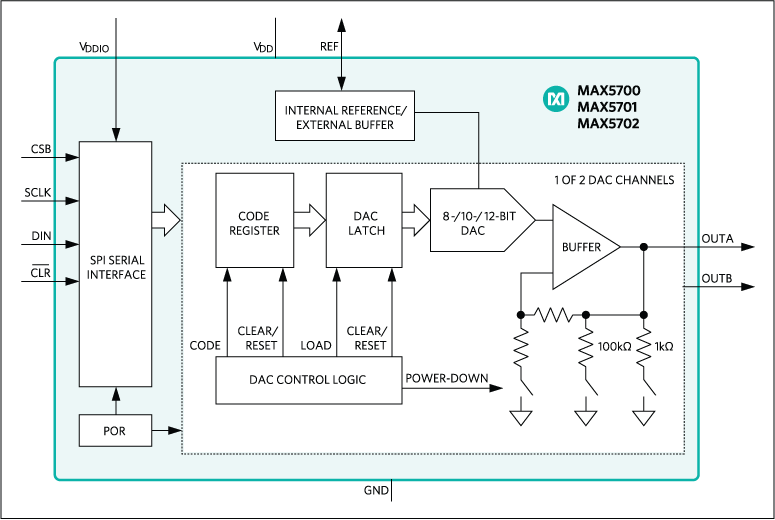

The MAX5700/MAX5701/MAX5702 2-channel, low-power, 8-/10-/12-bit, voltage-output digital-to-analog converters (DACs) include output buffers and an internal reference that is selectable to be 2.048V, 2.500V, or 4.096V. The MAX5700/MAX5701/MAX5702 accept a wide supply voltage range of 2.7V to 5.5V with extremely low power (1.5mW) consumption to accommodate most low-voltage applications. A precision external reference input allows rail-to-rail operation and presents a 100kΩ (typ) load to an external reference.

The MAX5700/MAX5701/MAX5702 have an a 50MHz 3-wire SPI/QSPI^™/MICROWIRE^®/DSP-compatible serial interface. The DAC output is buffered and has a low supply current of less than 250µA (max) per channel and a low offset error of ±0.5mV (typ). On power-up, the MAX5700/MAX5701/MAX5702 reset the DAC outputs to zero, providing additional safety for applications that drive valves or other transducers which need to be off on power-up. The internal reference is initially powered down to allow use of an external reference. The MAX5700/MAX5701/MAX5702 allow simultaneous output updates using software LOAD commands.

A clear logic input (active-low CLR) allows the contents of the CODE and the DAC registers to be cleared asynchronously and sets the DAC outputs to zero. The MAX5700/MAX5701/MAX5702 are available in a 10-pin µMAX^® and an ultra-small, 10-pin TDFN package and are specified over the -40°C to +125°C temperature range.

Applications

• Automatic Tuning and Optical Control
• Data Acquisition
• Gain and Offset Adjustment
• Portable Instrumentation
• Power Amplifier Control and Biasing
• Process Control and Servo Loops
• Programmable Voltage and Current Sources
