Analog Devices MAX11190 Product Info

• Integration and Packaging Save Space
  • Simultaneous Sampling
  • Dual, 4-Channel, Single-Ended 12-Bit Resolution ADC (2 x 2)
  • 16-Pin, 3mm x 3mm TQFN Package
• Excellent Performance Ideal for Motor Control Applications
  • 72dB SNR
  • 3Msps Conversion Rate without Pipeline Delay
  • External Reference Inputs
  • Wide -40°C to +125°C Operation
• Low Power Design Simplifies Power-Supply Requirements
  • Very Low Power Consumption at 5µA/ksps
  • 10.5mW at 3Msps
  • 2.2V to 3.6V Supply Voltage
  • 2.6µA Power-Down Current
• Dual SPI Ports Simplifies System Design
  • SPI-/QSPI-/MICROWIRE-Compatible Serial Interface with Two DOUTA/DOUTB Pins
  • Dedicated Digital Output Supply Allows Serial Interface to Directly Connect to 1.5V, 1.8V, 2.5V, or 3V Digital Systems

The MAX11190 is a 4-channel, dual, multiplexed, 12-bit, compact, high-speed, low-power, successive approximation analog-to-digital converter (ADC). This high-performance dual ADC includes high-dynamic range sample-and-holds and a high-speed serial interface. This ADC accepts a full-scale input from 0V to the reference voltage.

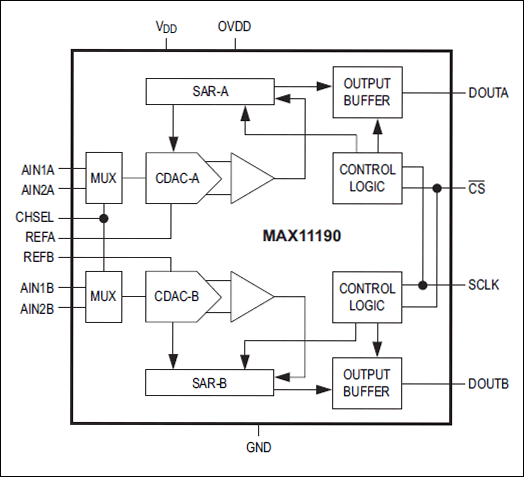

The device features two dual, single-ended analog inputs connected to two ADC cores using 2:1 MUXs. The device also includes a separate supply input for data interface and dedicated inputs for reference voltage.

This device operates from a 2.2V to 3.6V supply and consumes only 10.5mW at 3Msps. The device includes full power-down mode and fast wake-up for optimal power management and a high-speed 3-wire serial interface. The 3-wire serial interface directly connects to SPI, QSPI^™, and MICROWIRE^® devices without external logic. Each of the two internal ADCs has its own dedicated DOUTA/DOUTB for faster data communication.

Excellent dynamic performance, low voltage, low power, ease of use, and small package size make this converter ideal for simultaneous data-acquisition applications, and for other applications that demand low power consumption and minimal space.

The device is available in a 3mm x 3mm, 16-pin TQFN package and operates over the -40°C to +125°C temperature range.

Applications

• Medical Instrumentation
• Motor Control
• Process Control
• Simultaneous Data Acquisition
