AD7278

PRODUCTION

3 MSPS, 8-Bit ADC in 8-Lead MSOP and 6-Lead TSOT

Analog Devices AD7278 Product Info

10 February 2026 5

Features

Throughput rate: 3 MSPS
Specified for VDD of 2.35 V to 3.6 V
Power consumption
12.6 mW at 3 MSPS with 3 V supplies

Wide input bandwidth
70 dB SNR at 1 MHz input frequency
Flexible power/serial clock speed management
See datasheet for additional features

Part details & applications

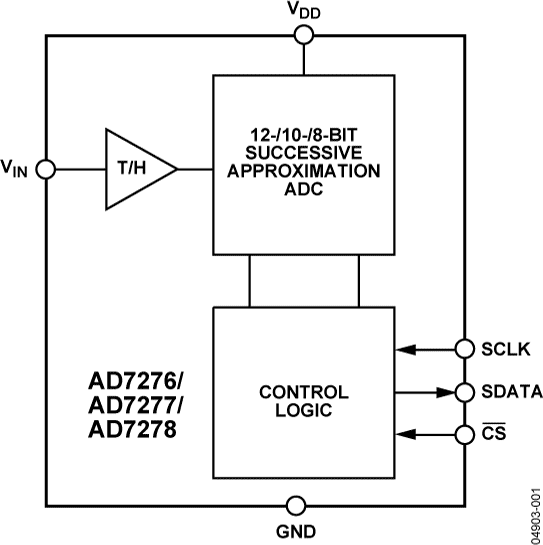

The AD7276 / AD7277 / AD7278 are 12-/10-/8-bit, high speed, low power, successive approximation analog-to-digital converters (ADCs), respectively. The parts operate from a single 2.35 V to 3.6 V power supply and feature throughput rates of up to 3 MSPS. The parts contain a low noise, wide bandwidth trackand-hold amplifier that can handle input frequencies in excess of 55 MHz.

The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is initiated at this point. There are no pipeline delays associated with the part.

The AD7276/AD7277/AD7278 use advanced design techniques to achieve very low power dissipation at high throughput rates. The reference for the part is taken internally from VDD. This allows the widest dynamic input range to the ADC; therefore, the analog input range for the part is 0 to VDD. The conversion rate is determined by the SCLK.

PRODUCT HIGHLIGHTS

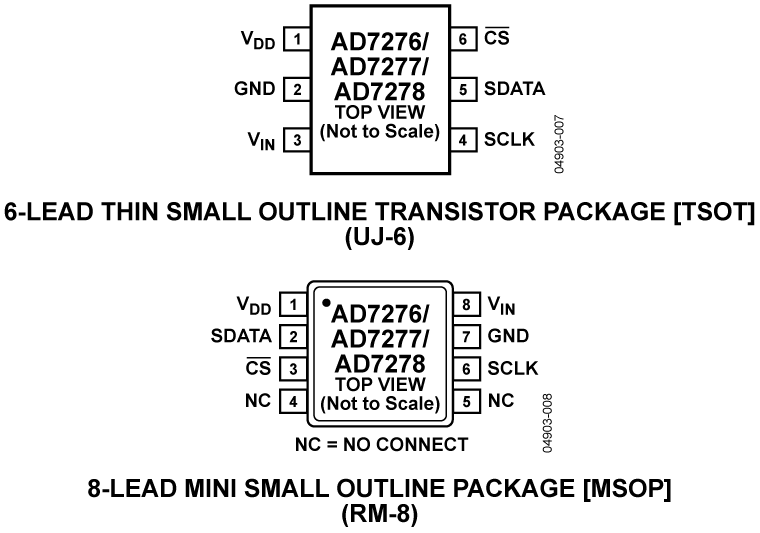

3 MSPS ADCs in a 6-lead TSOT package
AD7476/AD7477/AD7478 and AD7476A/AD7477A/ AD7478A pin-compatible
High throughput with low power consumption
Flexible power/serial clock speed management. This allows maximum power efficiency at low throughput rates
Reference derived from the power supply
No pipeline delay. The parts feature a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control.
