Analog Devices MAX5474 Product Info

• Wiper Position Stored in Nonvolatile Memory and Recalled Upon Power-Up
• Tiny SOT23 Package
• 35ppm/°C End-to-End Resistance Temperature Coefficient
• 5ppm/°C Ratiometric Temperature Coefficient
• 32 Tap Positions
• Voltage-Divider or Variable-Resistor Potentiometer Configuration
• 50kΩ and 100kΩ End-to-End Resistance Values
• 1µA (max) Static Supply Current
• 2.7V to 5.25V Single-Supply Operation
• 200,000 Wiper Store Cycles
• 50-Year Wiper Data Retention

The MAX5471/MAX5472/MAX5474/MAX5475 linear-taper digital potentiometers function as mechanical potentiometers, but replace the mechanics with a simple 3-wire up/down digital interface. These digital potentiometers feature nonvolatile memory (EEPROM) to return the wiper to its previously stored position upon power-up.

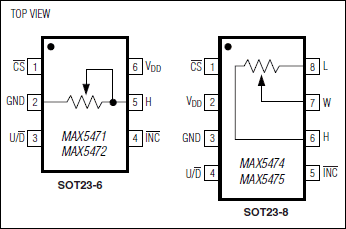

The MAX5471/MAX5472 are 2-terminal, variable resistors in 6-pin SOT23 packages. The MAX5474/MAX5475 are 3-terminal potentiometers in 8-pin SOT23 packages.

The MAX5471/MAX5474 have an end-to-end resistance of 50kΩ, and the MAX5472/MAX5475 have an end-to-end resistance of 100kΩ. All of these devices have 32 wiper positions, a low ratiometric temperature coefficient (5ppm/°C), and all operate from a single +2.7V to +5.25V supply. Each device is guaranteed over the extended -40°C to +85°C temperature range.

Applications

• Audio Volume Control
• Liquid-Crystal Display (LCD) Screen Adjustment
• Mechanical Potentiometer Replacements
• Programmable Filters
