Analog Devices MAX530 Product Info

• Buffered Voltage Output
• Internal 2.048V Voltage Reference
• Operates from Single +5V or Dual ±5V Supplies
• Low Power Consumption:
  • 250µA Operating Current
  • 40µA Shutdown-Mode Current
• SSOP Package Saves Space
• Relative Accuracy: ±1/2 LSB Max Over Temperature
• Guaranteed Monotonic Over Temperature
• 4-Quadrant Multiplication with No External Components
• Power-On Reset
• Double-Buffered Parallel Logic Inputs

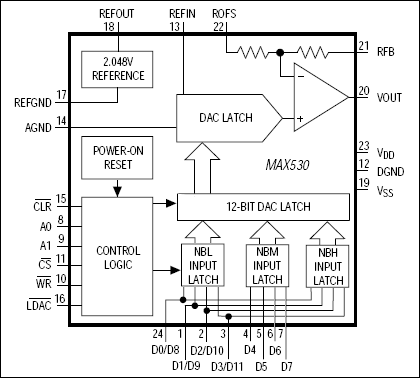

The MAX530 is a low-power, 12-bit, voltage-output digital-to-analog converter (DAC) that uses single +5V or dual ±5V supplies. This device has an on-chip voltage reference plus an output buffer amplifier. Operating current is only 250µA from a single +5V supply, making it ideal for portable and battery-powered applications. In addition, the SSOP (Shrink-Small-Outline-Package) measures only 0.1 square inches, using less board area than an 8-pin DIP. 12-bit resolution is achieved through laser trimming of the DAC, op amp, and reference. No further adjustments are necessary.

Internal gain-setting resistors can be used to define a DAC output voltage range of 0V to +2.048V, 0V to +4.096V, or ±2.048V. Four-quadrant multiplication is possible without the use of external resistors or op amps. The parallel logic inputs are double buffered and are compatible with 4-bit, 8-bit, and 16-bit microprocessors. For DACs with similar features but with a serial data interface, refer to the MAX531/MAX538/MAX539 data sheet.

Applications

• Digital Gain and Offset Control
• General Purpose
• Industrial Process Controls
