LTC1658

PRODUCTION

14-Bit Rail-to-Rail Micropower DAC

Analog Devices LTC1658 Product Info

10 February 2026 6

Features

14-Bit Resolution

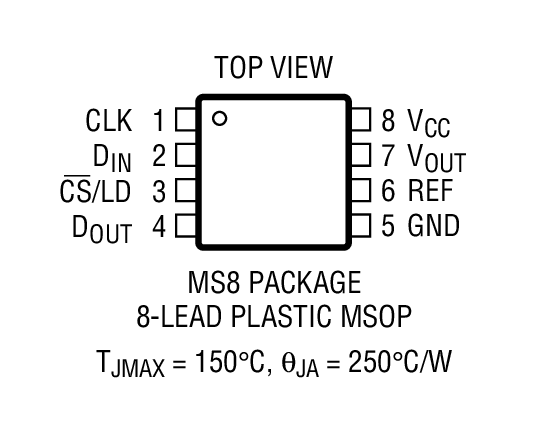

8-Lead MSOP Package
Buffered True Rail-to-Rail Voltage Output
3V or 5V Single Supply Operation
Very Low Power: I_CC(TYP) = 270µA
Power-On Reset
3-Wire Cascadable Serial Interface is Compatible with SPI and MICROWIRE™

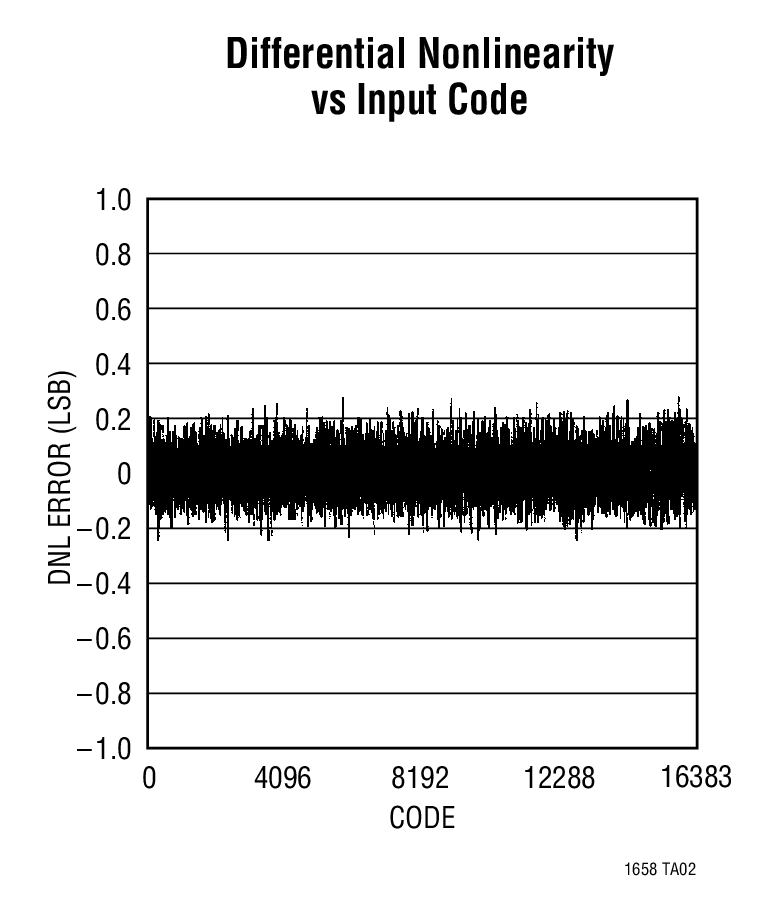

Maximum DNL Error: 1LSB
Low Cost

Part details & applications

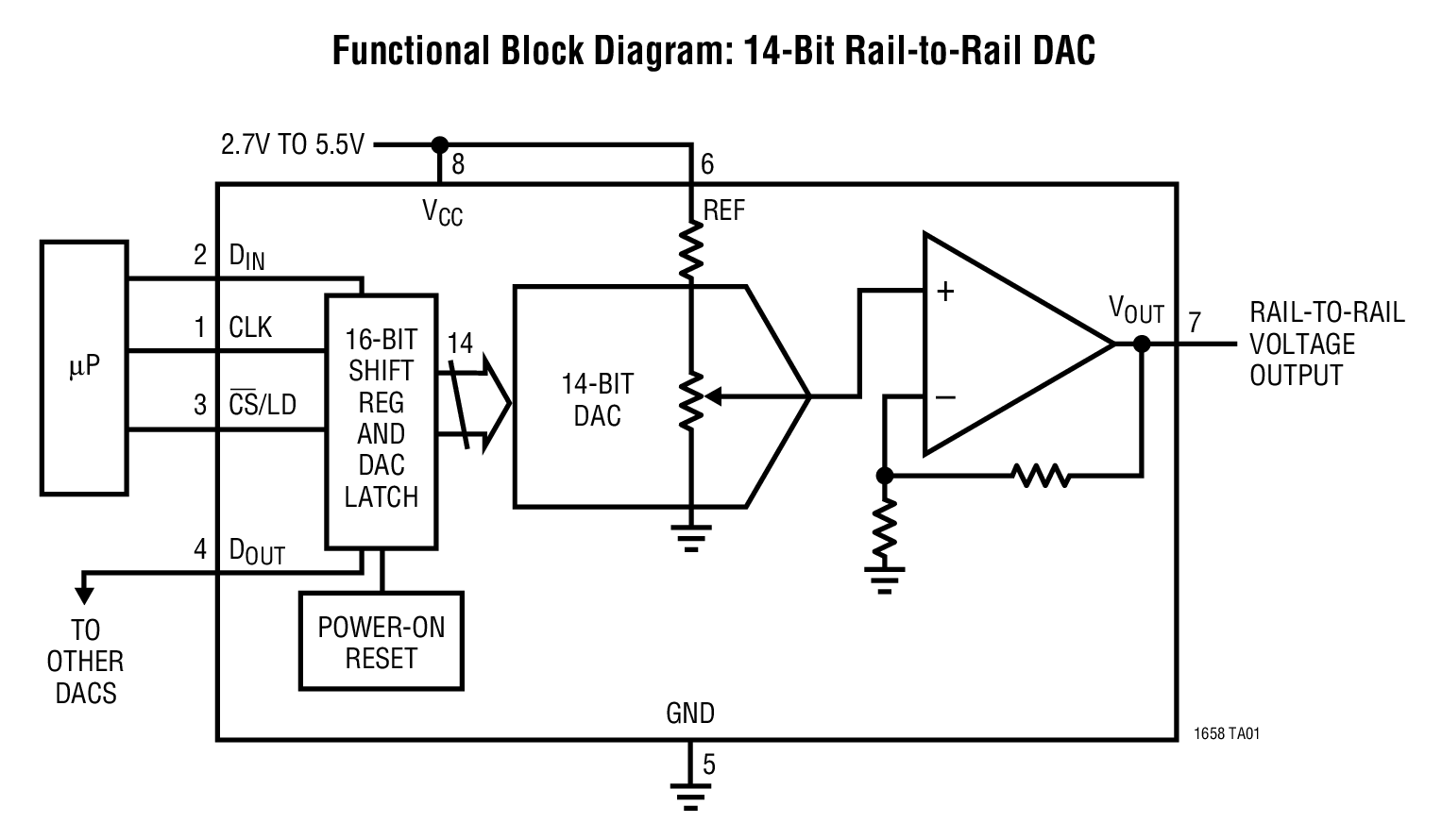

The LTC1658 is a single supply, rail-to-rail voltage output, 14-bit digital-to-analog converter (DAC) in an 8-lead MSOP package. It includes an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface.

The LTC1658 output swings from 0V to V_REF. The REF pin can be tied to V_CC for rail-to-rail output swing. The LTC1658 operates from a single 2.7V to 5.5V supply. The typical power supply current is 270µA.

The low power supply current makes the LTC1658 ideal for battery-powered applications. The space saving MSOP provides the smallest 14-bit DAC system available.

Applications

Digital Calibration
Industrial Process Control
Automatic Test Equipment
Cellular Telephones
