Analog Devices MAX4716 Product Info

• Low R_ON
  • 0.4Ω max (+3V Supply)
  • 1.2Ω max (+1.8V Supply)
• 0.1Ωtryi max R_ON Flatness (+3V Supply)
• +1.6V to +3.6V Single-Supply Operation
• Available in 5-Pin SC70 Packages
• Fast Switching: t_ON = 18ns max, t_OFF = 12ns max
• +1.8V CMOS Logic Compatible (+3V Supply)
• Pin Compatible with MAX4594 (MAX4715)
• Pin Compatible with MAX4595 (MAX4716)

The MAX4715/MAX4716 are low on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.6V to +3.6V single supply. The MAX4715 is normally open (NO), and the MAX4716 is normally closed (NC). These devices also have fast switching speeds (t_ON = 18ns max, t_OFF = 12ns max).

When powered from a +3V supply, the MAX4715/MAX4716 offer 0.4Ω max on-resistance (R_ON) with 0.1Ω max R_ON flatness. Their digital logic inputs are +1.8V CMOS compatible when using a single +3V supply.

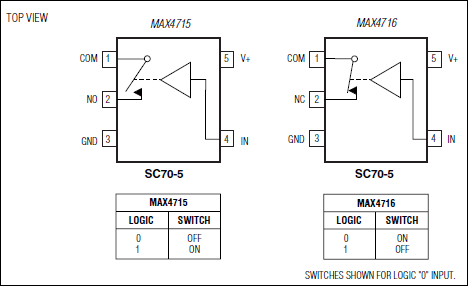

The MAX4715 is pin compatible with the MAX4594, and the MAX4716 is pin compatible with the MAX4595. The MAX4715/MAX4716 are available in SC70-5 packages.

Applications

• Audio/Video Signal Routing
• Battery-Powered Applications
• Cell Phones
• Communication Systems
• Hard Drives
• Low-Voltage Data Acquisition
• Modems
• PCMCIA Cards
• Power Routing
