• Improved Second Source of the MC10LVEP11 (MAX9320)
• +2.25V to +3.8V Differential HSTL/LVPECL Operation
• -2.25V to -3.8V LVECL Operation
• Low 22mA (typ) Supply Current
• 20ps (typ) Part-to-Part Skew
• 6ps (typ) Output-to-Output Skew
• 208ps (typ) Propagation Delay
• Minimum 300mV Output at 3GHz
• Outputs Low for Open Input
• ESD Protection >2kV (Human Body Model)
• Available in Thermally Enhanced Exposed-Pad SO Package

The MAX9320/MAX9320A are low-skew, 1-to-2 differential drivers designed for clock and data distribution. The input is reproduced at two differential outputs. The differential input can be adapted to accept single-ended inputs by applying an external reference voltage.

The MAX9320/MAX9320A feature ultra-low propagation delay (208ps), part-to-part skew (20ps), and output-to-output skew (6ps) with 30mA maximum supply current, making these devices ideal for clock distribution. For interfacing to differential HSTL and LVPECL signals, these devices operate over a +2.25V to +3.8V supply range, allowing high-performance clock or data distribution in systems with a nominal +2.5V or +3.3V supply. For differential LVECL operation, these devices operate from a -2.25V to -3.8V supply.

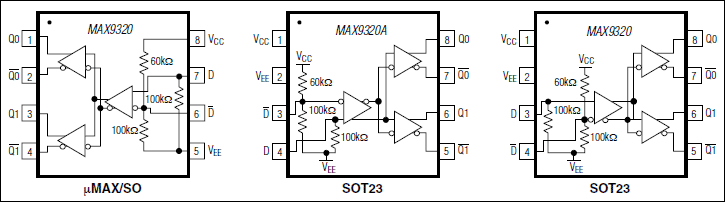

The pinout is the only difference between the MAX9320 and MAX9320A. Multiple pinouts are provided to simplify routing across a backplane to either side of a double-sided board.

These devices are offered in space-saving 8-pin SOT23, µMAX®, and SO packages.

Applications

• Low-Jitter Data Repeater
• Precision Clock Distribution
• Protection Switching
